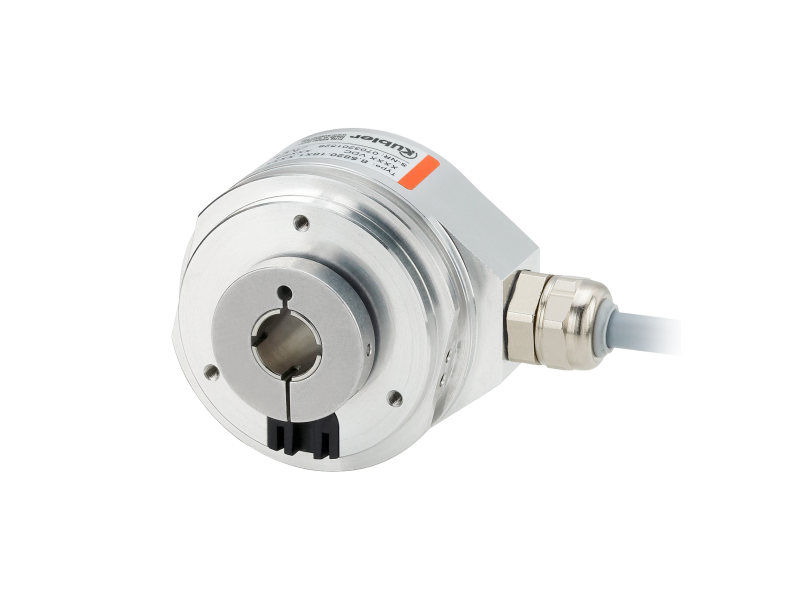

Kuebler Encoders Incremental 5824 SinCos; 8.5824.XXXX.XXXX
Kuebler Encoders Incremental 5824 SinCos; 8.5824.XXXX.XXXX Sine output with reference signal – for drive technology. The incremental encoders 5804 / 5824 have...
Price on request
Kuebler Encoders Incremental 5824 SinCos; 8.5824.XXXX.XXXX
Sine output with reference signal – for drive technology.
The incremental encoders 5804 / 5824 have a SinCos interface. They are particularly suitable for use in drive technology.
These encoders are preferably used in applications where a standard SinCos interface is sufficient.
- Reliable
- Resistant
- High speed
- Dimension Ø 58 mm
- 5.000 ppr incremental
- Max 12 mm hollow shaft, blind hole
- Max 12 mm hollow shaft, through
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. | 5.000 ppr incremental |
| Power supply |
5 V DC 10...30 V DC |
| Interfaces | SinCos |
| Mechanical | |
|---|---|
| Dimension | Ø 58 mm |
| Shaft type |
6 mm hollow shaft, blind hole 8 mm hollow shaft, blind hole 6 mm hollow shaft, through 10 mm hollow shaft, blind hole 8 mm hollow shaft, through 12 mm hollow shaft, blind hole 10 mm hollow shaft, through 12 mm hollow shaft, through |
| Flange type |
Spring elements, short Stator coupling Ø 58.00 mm Ø 65.00 mm |
| Working temperature | -20 °C ... +85 °C |
| Protection level |
IP40 IP66 |
| Connection types |
Radial cable M23 connector radial |
| Max. rotational speed | 12.000 min-1 |
| Weight | 400 g |
-
5804-5824 en-1
