Microsonic Ultrazvučni senzor ews-100/M18/CD Set
microsonic ultrasonic sensor ews-100/M18/CD Set...
Price on request
microsonic ultrasonic sensor ews-100/M18/CD Set
-
1 x pnp
100 - 2,500 mm
cylindrical M18
one-way barrier
receiver for ultrasonic through-beam barrier
transmitter for ultrasonic through-beam barrier
transmitter for ultrasonic through-beam barrier
Transmitter-receiver pulse mode
200 kHz
10 - 30 V d.c., reverse polarity protection
± 10 %
as emitter ≤ 50 mA, as receiver ≤ 25 mA

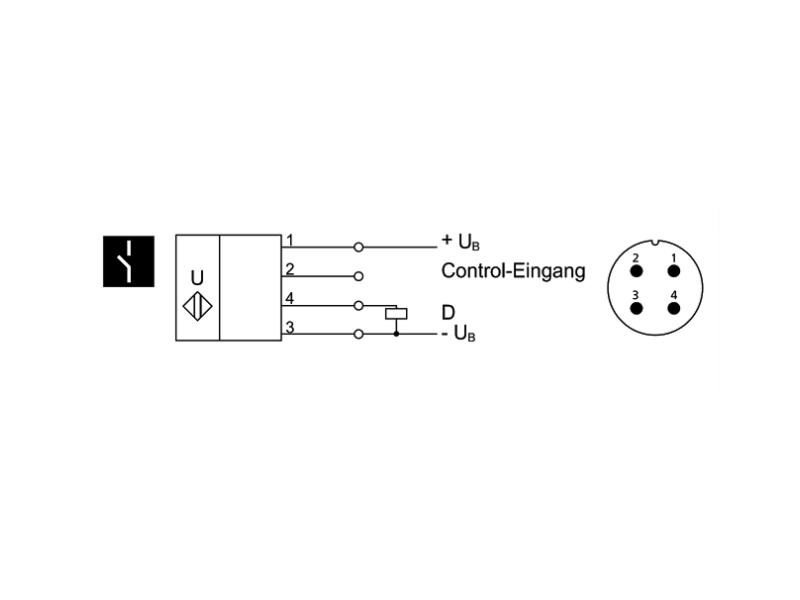

4-pin M12 initiator plug
switching output
pnp: Imax = 200 mA (UB-2V)
NOC/NCC adjustable, short-circuit-proof
pnp: Imax = 200 mA (UB-2V)
NOC/NCC adjustable, short-circuit-proof
200 Hz, with activated filter 50 Hz
5 ms, with activated filter 15 ms
< 300 ms
control input
Teach-in input
Teach-in input
ABS
1 Nm
IP 67
-25°C to +70°C
-40°C to +85°C
2 x 15 g
single transmitter/receiver
control input
Teach-in
LED green (transmitter and receiver: working), LED yellow (only receiver: switch status)
receiver for ultrasonic through-beam barrier
transmitter for ultrasonic through-beam barrier
transmitter for ultrasonic through-beam barrier
-
microsonic ews-100 M18 CD Set
