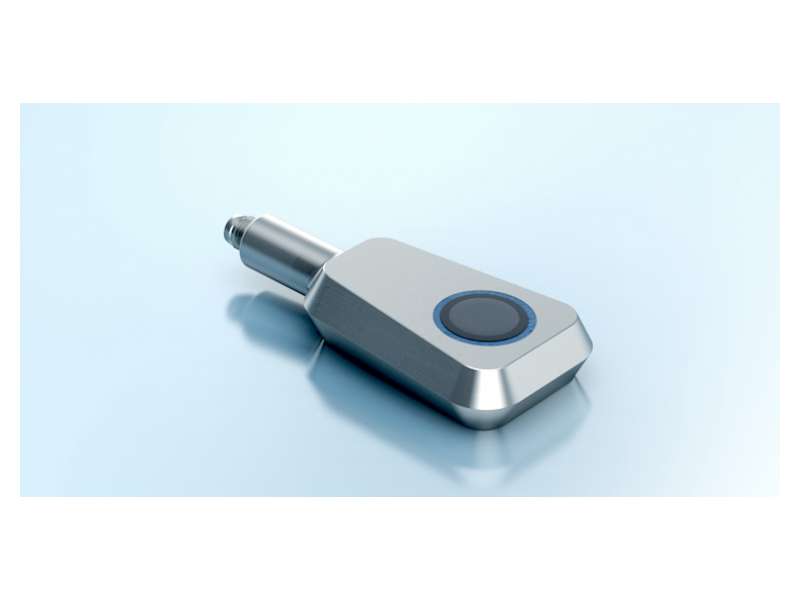

Microsonic Ultrazvučni senzor pms-100/CU/A1
microsonic ultrasonic sensor pms-100/CU/A1...
Price on request
microsonic ultrasonic sensor pms-100/CU/A1
-
1 x analogue 0-10 V
-
1,300 mm
120 - 1.300 mm
Innovative housing design in washdown
analogue distance measurements
The pms ultrasonic sensor in stainless steel housing is designed according to EHEDG guidelines.
hohe Chemiebeständigkeit
Edelstahlausführung
UL Listed
Hygienic Design
ECOLAB
EHEDG (TYPE EL Class I AUX)
Edelstahlausführung
UL Listed
Hygienic Design
ECOLAB
EHEDG (TYPE EL Class I AUX)
echo propagation time measurement
200 kHz
120 mm
1,000 mm
1,300 mm
0.069 mm to 0.38 mm, depending on the analogue window
± 0.15 %
± 1 % (temperature drift internally compensated)
15 V bis 30 V DC, verpolfest
± 10 %
≤ 40 mA

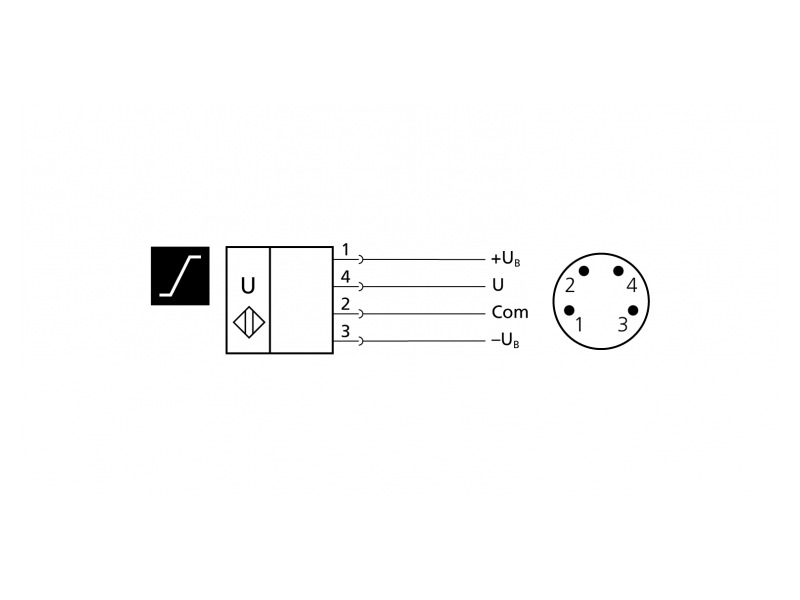

4-pin M8 initiator plug
analogue output
voltage: 0-10 V, short-circuit-proof
switchable rising/falling
voltage: 0-10 V, short-circuit-proof
switchable rising/falling
60 ms
< 300 ms
com input
synchronisation input
teach-in input
synchronisation input
teach-in input
stainless steel
coated with PTFE film, FKM O-ring
IP 66, IP 67, IP 68
85°C
-25°C to +70°C
-40°C to +85°C
140 g
yes
com input
Teach-in via com input on pin 2
LCA-2 with LinkControl
LCA-2 with LinkControl
yes, via external clock generator
hohe Chemiebeständigkeit
Edelstahlausführung
UL Listed
Hygienic Design
ECOLAB
EHEDG (TYPE EL Class I AUX)
Edelstahlausführung
UL Listed
Hygienic Design
ECOLAB
EHEDG (TYPE EL Class I AUX)
-
microsonic pms-100 CU A1
