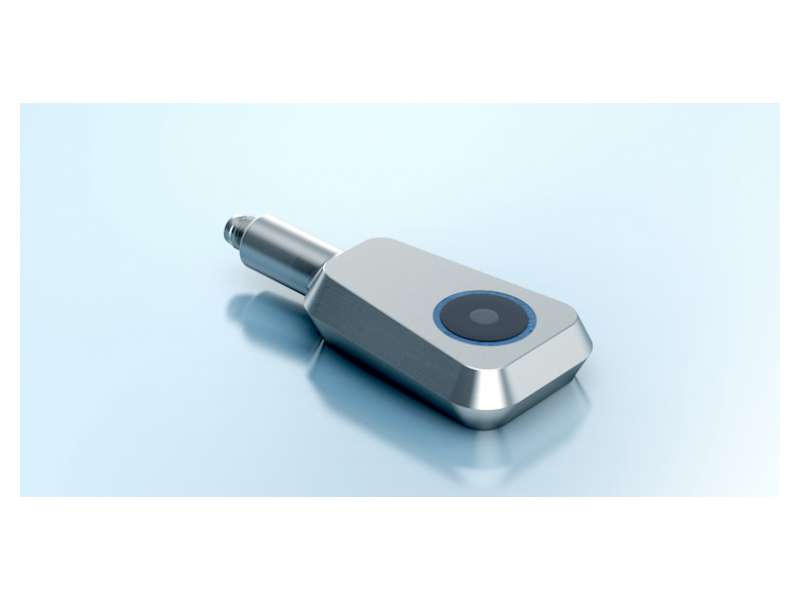

Microsonic Ultrazvučni senzor pms-15/CI/A1
microsonic ultrasonic sensor pms-15/CI/A1...
Price on request
microsonic ultrasonic sensor pms-15/CI/A1
-
1 x analogue 4-20 mA
-
250 mm
20 - 250 mm
Innovative housing design in washdown
analogue distance measurements
The pms ultrasonic sensor in stainless steel housing is designed according to EHEDG guidelines.
hohe Chemiebeständigkeit
Edelstahlausführung
UL Listed
Hygienic Design
ECOLAB
EHEDG (TYPE EL Class I AUX)
Edelstahlausführung
UL Listed
Hygienic Design
ECOLAB
EHEDG (TYPE EL Class I AUX)
echo propagation time measurement
380 kHz
20 mm
150 mm
250 mm
0.069 mm
± 0.15 %
± 1 % (temperature drift internally compensated)
10 - 30 V d.c., reverse polarity protection
± 10 %
≤ 40 mA

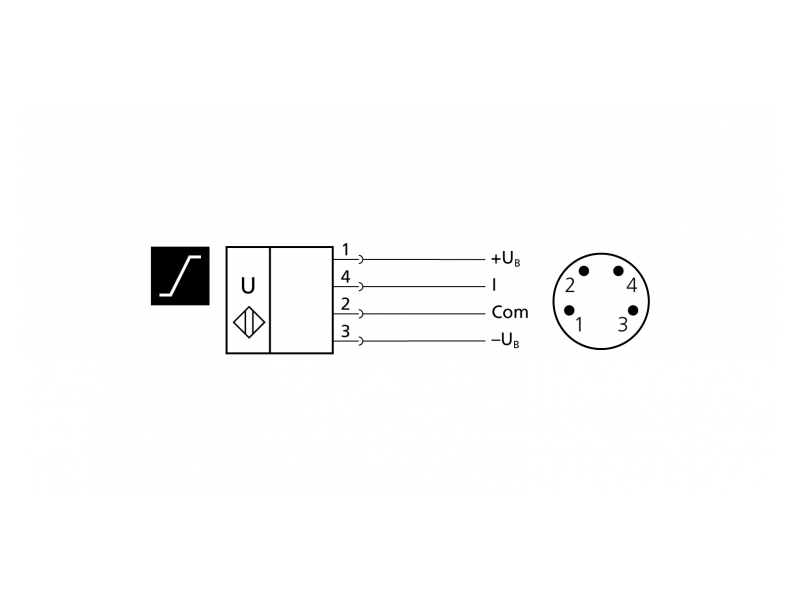

4-pin M8 initiator plug
analogue output
current: 4-20 mA
switchable rising/falling
current: 4-20 mA
switchable rising/falling
24 ms
< 300 ms
com input
synchronisation input
teach-in input
synchronisation input
teach-in input
stainless steel
coated with PTFE film, FKM O-ring
IP 66, IP 67, IP 68
85°C
-25°C to +70°C
-40°C to +85°C
140 g
yes
com input
Teach-in via com input on pin 2
LCA-2 with LinkControl
LCA-2 with LinkControl
yes, via external clock generator
hohe Chemiebeständigkeit
Edelstahlausführung
UL Listed
Hygienic Design
ECOLAB
EHEDG (TYPE EL Class I AUX)
Edelstahlausführung
UL Listed
Hygienic Design
ECOLAB
EHEDG (TYPE EL Class I AUX)
-
microsonic pms-15 CI A1
