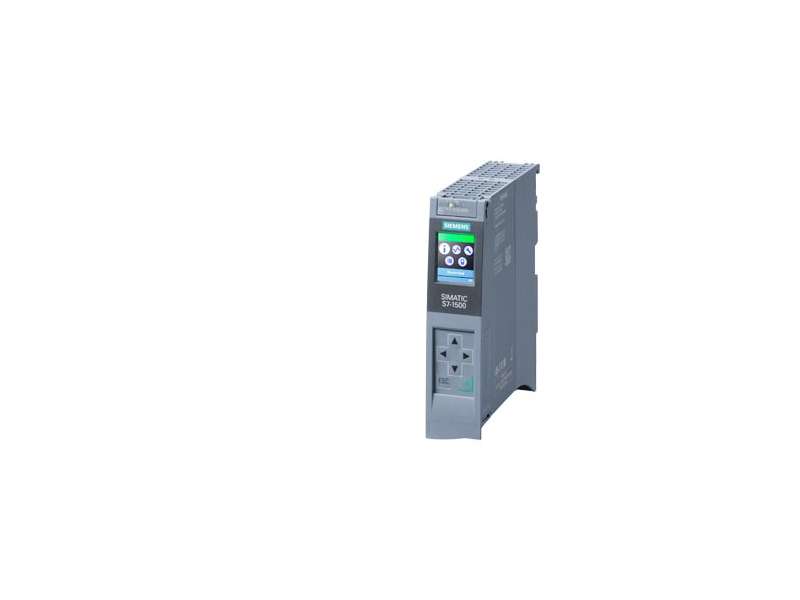

Name: Siemens CPU 1513-1 PN, 300KB Prog., 1,5MB Data; 6ES7513-1AL02-0AB0
Brand: Siemens
SKU: 6ES7513-1AL02-0AB0
Price: 256760.55 RSD
Availability: OutOfStock

Siemens CPU 1513-1 PN, 300KB Prog., 1,5MB Data; 6ES7513-1AL02-0AB0

SIMATIC S7-1500, CPU 1513-1 PN, central processing unit with working memory 300 KB for program and 1.5 MB for data, 1. interface: PROFINET IRT with 2 port switch,...

Brand: Siemens
Product Code: 6ES7513-1AL02-0AB0
Availability: Check availability

Price on request

Description
Specification

SIMATIC S7-1500, CPU 1513-1 PN, central processing unit with working memory 300 KB for program and 1.5 MB for data, 1. interface: PROFINET IRT with 2 port switch, 40 NS bit-performance, SIMATIC memory card necessary

General information
Product type designation		CPU 1513-1 PN
HW functional status		FS03
Firmware version		V2.9
Product function
● I&M data		Yes; I&M0 to I&M3
● Isochronous mode		Yes; Distributed and central; with minimum OB 6x cycle of 500 µs (distributed) and 1 ms (central)
Engineering with
● STEP 7 TIA Portal configurable/integrated from version		V17 (FW V2.9) / V15 (FW V2.5) or higher; with older TIA Portal versions configurable as 6ES7513-1AL01-0AB0
Configuration control
via dataset		Yes
Display
Screen diagonal [cm]		3.45 cm
Control elements
Number of keys		8
Mode buttons		2
Supply voltage
Rated value (DC)		24 V
permissible range, lower limit (DC)		19.2 V
permissible range, upper limit (DC)		28.8 V
Reverse polarity protection		Yes
Mains buffering
● Mains/voltage failure stored energy time		5 ms
● Repeat rate, min.		1/s
Input current
Current consumption (rated value)		0.7 A
Current consumption, max.		0.95 A
Inrush current, max.		1.9 A; Rated value
I²t		0.02 A²·s
Power
Infeed power to the backplane bus		10 W
Power consumption from the backplane bus (balanced)		5.5 W
Power loss
Power loss, typ.		5.7 W
Memory
Number of slots for SIMATIC memory card		1
SIMATIC memory card required		Yes
Work memory
● integrated (for program)		300 kbyte
● integrated (for data)		1.5 Mbyte
Load memory
● Plug-in (SIMATIC Memory Card), max.		32 Gbyte
Backup
● maintenance-free		Yes
CPU processing times
for bit operations, typ.		40 ns
for word operations, typ.		48 ns
for fixed point arithmetic, typ.		64 ns
for floating point arithmetic, typ.		256 ns
CPU-blocks
Number of elements (total)		4 000; Blocks (OB, FB, FC, DB) and UDTs
DB
● Number range		1 ... 60 999; subdivided into: number range that can be used by the user: 1 ... 59 999, and number range of DBs created via SFC 86: 60 000 ... 60 999
● Size, max.		1.5 Mbyte; For DBs with absolute addressing, the max. size is 64 KB
FB
● Number range		0 ... 65 535
● Size, max.		300 kbyte
FC
● Number range		0 ... 65 535
● Size, max.		300 kbyte
OB
● Size, max.		300 kbyte
● Number of free cycle OBs		100
● Number of time alarm OBs		20
● Number of delay alarm OBs		20
● Number of cyclic interrupt OBs		20; With minimum OB 3x cycle of 500 µs
● Number of process alarm OBs		50
● Number of DPV1 alarm OBs		3
● Number of isochronous mode OBs		2
● Number of technology synchronous alarm OBs		2
● Number of startup OBs		100
● Number of asynchronous error OBs		4
● Number of synchronous error OBs		2
● Number of diagnostic alarm OBs
