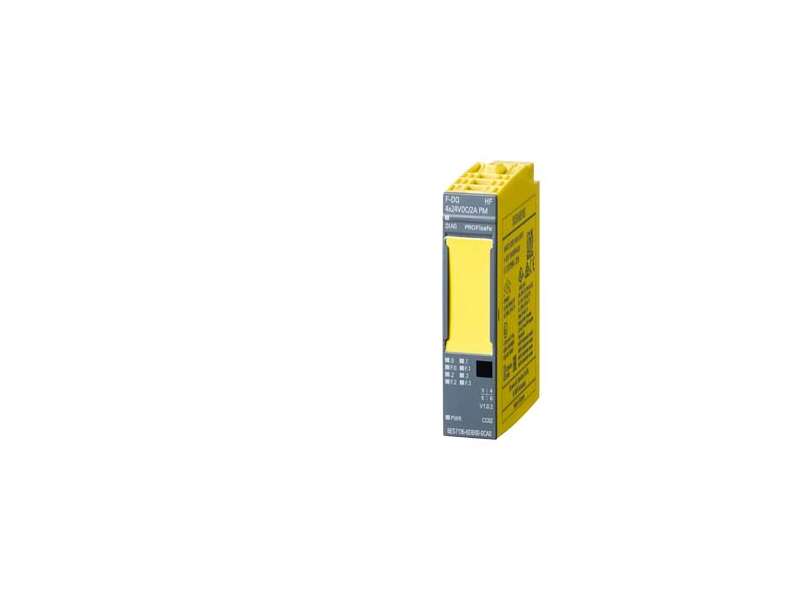

SIMATIC DP, Electronics module f. ET200SP, F-RQ 1x 24 V DC/24..230VAC/5A ST, 20 mm overall width, 1 relay output (2 NO) Summation output current 5 A, load voltage 24 V DC and 24.. 230 V AC, Can be used up to PL E (ISO 13849-1: 2008)/ SIL 3 (IEC 61508: 2010) if control takes place by (e.g. 6ES7136-6DB00-0CA0) F-DQ
General information
Product type designation
F-RQ 24 ... 48VDC/24 ... 230VAC/5A ST
usable BaseUnits
BU type F0
Color code for module-specific color identification plate
CC42
Product function
● I&M data
Yes; I&M0 to I&M3
Engineering with
● STEP 7 TIA Portal configurable/integrated from version
V13
● STEP 7 configurable/integrated from version
V5.5 SP4 and higher
● PROFINET from GSD version/GSD revision
V2.31
Supply voltage
Rated value (DC)
24 V; Coil voltage
permissible range, lower limit (DC)
20.4 V
permissible range, upper limit (DC)
28.8 V
power supply according to NEC Class 2 required
No
Power
Power available from the backplane bus
100 mW
Power loss
Power loss, typ.
1 W
Address area
Address space per module
● Inputs
1 byte
Hardware configuration
Automatic encoding
Yes
● Mechanical coding element
Yes
● Type of mechanical coding element
type C
Digital outputs
Type of digital output
Relays
Number of digital outputs
1
Limitation of inductive shutdown voltage to
No
Controlling a digital input
Yes
Switching capacity of the outputs
● with resistive load, max.
5 A
● on lamp load, max.
25 W
Switching frequency
● with resistive load, max.
2 Hz
● with inductive load, max.
0.1 Hz; See data in manual
● with inductive load (acc. to IEC 60947-5-1, DC13), max.
0.1 Hz
● with inductive load (acc. to IEC 60947-5-1, AC15), max.
2 Hz
Total current of the outputs (per module)
horizontal installation
— up to 40 °C, max.
5 A; note derating data in the manual
— up to 50 °C, max.
4 A; note derating data in the manual
— up to 60 °C, max.
3 A; note derating data in the manual
vertical installation
— up to 50 °C, max.
3 A; note derating data in the manual
Relay outputs
● Number of relay outputs
1; 2 NO contacts
● Rated supply voltage of relay coil L+ (DC)
24 V
● Current consumption of relays (coil current of all relays), max.
