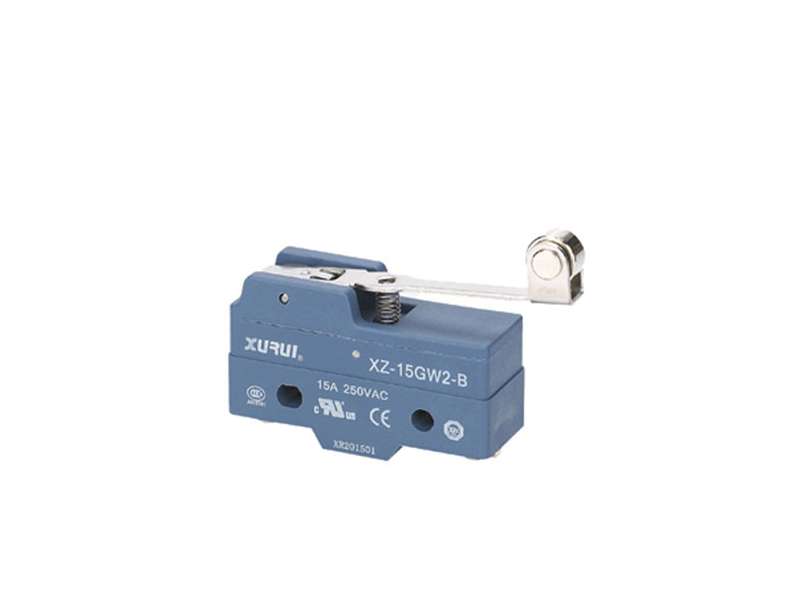

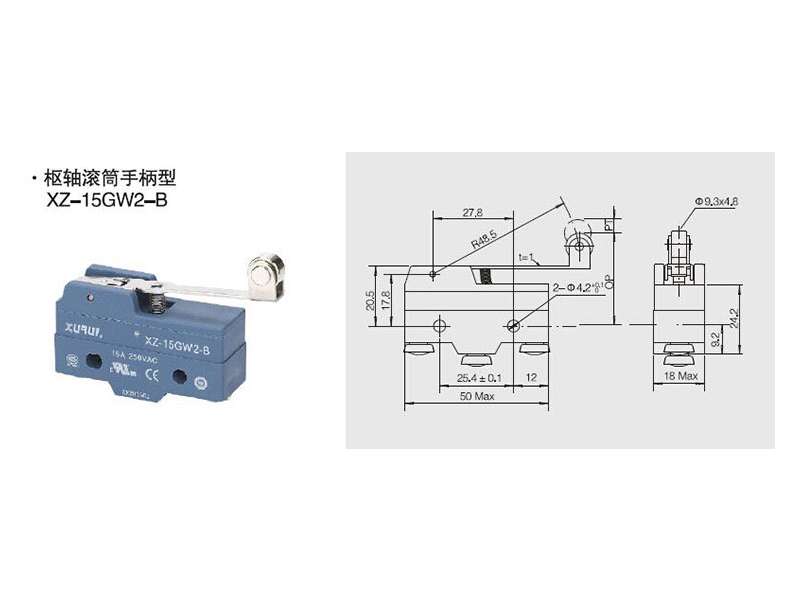

XURUI Mikro prekidač, nazivne struje 15 A, sa rasporedom kontakta 1 NC; XZ-15GW2-B
XURUI Micro Switches are characterized by a wide range of applications, long service life, quality and low price. Main advantages: • Small contact distance...
VAT-exclusive price: 470,26 |
VAT-inclusive price: 564,31 |
XURUI Micro Switches are characterized by a wide range of applications, long service life, quality and low price. Main advantages:
• Small contact distance
• High sensitivity
• Short operating stroke
• Use in various devices, electronic and telecommunication equipment, automotive industry, instruments, machines with motion control.
The housing, spring and levers are made of solid and quality materials. Choice of lever type and contact arrangement.
• Small contact distance
• High sensitivity
• Short operating stroke
• Use in various devices, electronic and telecommunication equipment, automotive industry, instruments, machines with motion control.
The housing, spring and levers are made of solid and quality materials. Choice of lever type and contact arrangement.
| Operating speed | 0.1mm-1m/s |
| Operating frequency |
Mechanical : 600 times/min Electrical : 30 times/min |
| Insulation resistance | 100Mohms at 500VDC |
| Contact resistance | 25 mOhms |
| Withstand voltage | 1000-1500 VAC |
| Protection degree | IP40 |
| Operating temperature | -25…+80 ͦC |
| Vibrations |
10-55 Hz , amplitude 1.5mm |
