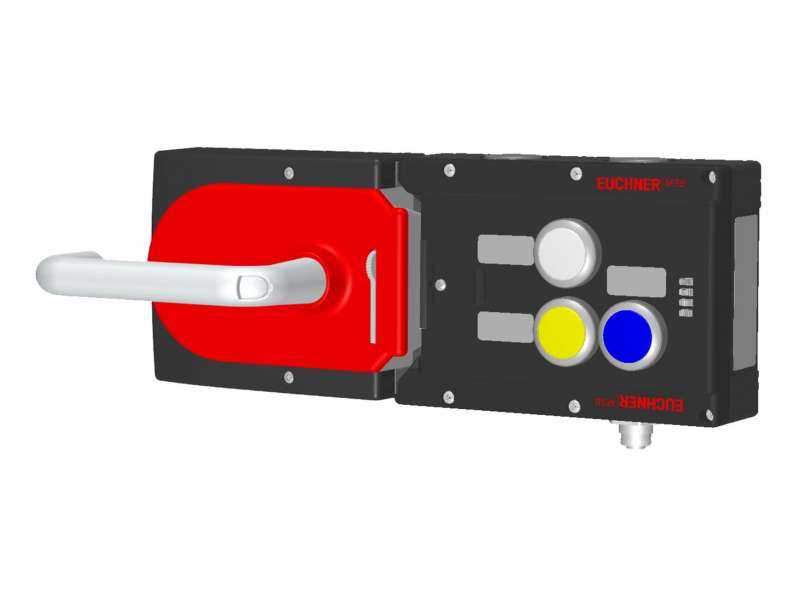

EUCHNER Interlocking set MGB-L0H-APA-L-110551; 110551
Interlocking set MGB-L0H-APA..., with 3 push buttons, incl. label carrier, M12 for enabling switch Locking (without guard locking) 3 pushbuttons (illuminated, wh,...
Cena na upit
Interlocking set MGB-L0H-APA..., with 3 push buttons, incl. label carrier, M12 for enabling switch
- Locking (without guard locking)
- 3 pushbuttons (illuminated, wh, ye, bu)
- Incl. adhesive labels
- With cable entry

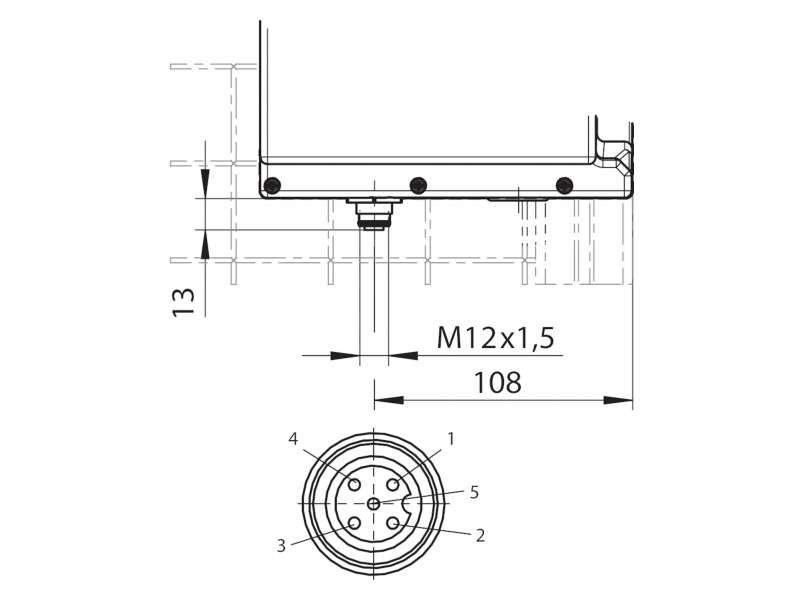

- With plug connector M12 for enabling switch
- Unicode

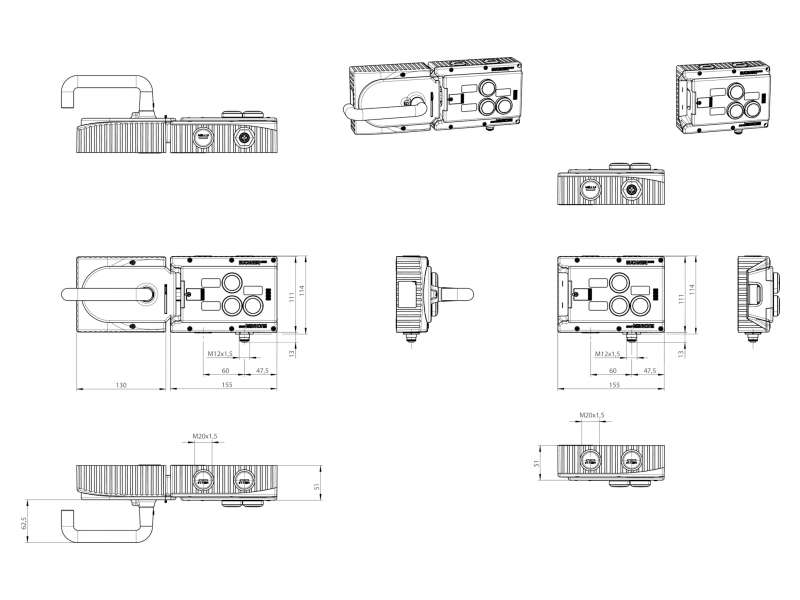

Interlocking module MGB-L0-APA-AA6A1-S3-L-110547 (Order no. 110547)
Mechanical values and environment
| Housing material | Reinforced plastic; die-cast zinc nickel-plated, stainless steel |
| Weight | |
| Net | 0,75 kg |
| Ambient temperature | |
| At UB = 24V DC | -20 ... 55 °C |
| Degree of protection | IP65 |
| Mechanical life | 1 x 106 |
| In case of use as door stop, and 1 Joule impact energy | 0,1 x 106 |
| Installation orientation | Door hinge DIN left |
| Switching frequency | 0,25 Hz |
| Connection | |
| Plug connector SFF5 | |
| Cable entries M20x1.5 |

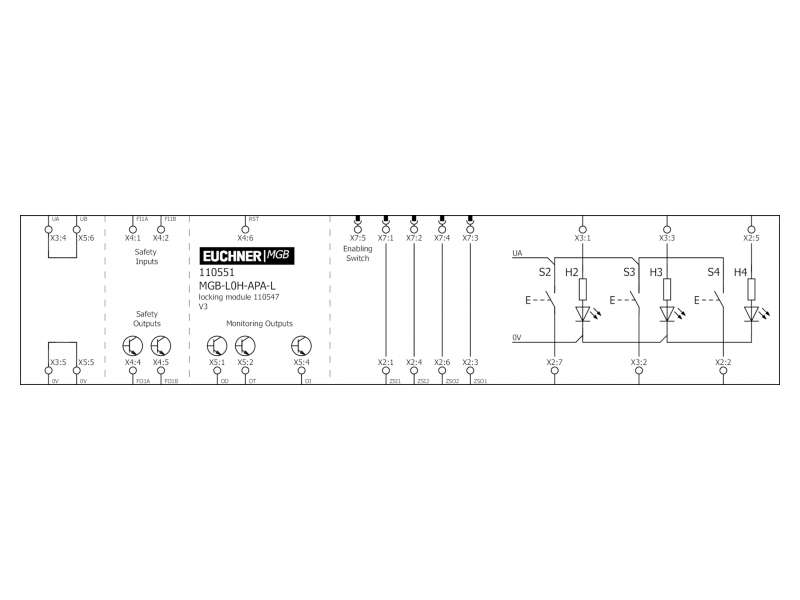

Electrical connection ratings
| Utilization category according to EN 60947-5-2 | |
| DC-13 | 24V 200mA |
| Rated insulation voltage Ui | 30 V |
| Rated impulse withstand voltage Uimp | 1,5 kV |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Connection cross-section | |
| (Rigid/flexible) | 0,13 ... 1,5 mm² (AWG 24 ... AWG 16) |
| (Rigid/flexible) with cable end sleeve according to DIN 46 228/1 | 0,25 ... 1,5 mm² |
| (Rigid/flexible) with cable end sleeve with collar according to DIN 46 228/1 | 0,25 ... 0,75 mm² |
| Safety class | III |
| Discrepancy time | |
| Between FO1A and FO1B | max.10 ms |
| Risk time according to EN 60947-5-3 | max.350 ms |
| Transponder coding | Unicode |
| Power supply UB | |
| Operating voltage DC | |
| UB | 24 V DC -15% ... 10% |
| Current consumption | |
| IUB | max.80 mA |
| Power supply UA | |
| Operating voltage DC | |
| UA | 24 V DC -15% ... 10% |
| Current consumption | |
| IUA | max.10 mA |
| Safety outputs FO1A, FO1B | |
| Test pulses | max.0,3 ms |
| Test-pulse interval | min.100 ms |
| Type of output | Semiconductor outputs, p-switching, short circuit-proof |
| Output voltage | |
| UFO1A /UFO1B HIGH | UB-2V ... UB V DC |
| UFO1A /UFO1B LOW | 0 ... 1 V DC |
| Output current | |
| Per safety output FO1A / FO1B | 1 ... 200 mA |
| Monitoring outputs OD, OT, OL, OI | |
| Type of output | Semiconductor outputs, p-switching, short circuit-proof |
| Output voltage | UA-2V ... UA V DC |
| Output current | max.50 mA |
| Controls and indicators | |
| Switching voltage | UA V |
| Switching current | 1 ... 10 mA |
| Breaking capacity | max.0,25 W |
| Power supply LED | 24 V DC |
Other
| Product version number | V3.0.0 |
| Slide-in label | |
| 3 pc. without marking | |
| Automatik Start | |
| Zutritt Anforderung | |
| Störung Quittieren | |
| Automatic Start | |
| Access Request | |
| Failure Reset |
Reliability values according to EN ISO 13849-1
| Monitoring of the position of the safety guard | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 3.7 x 10-9 |
| Mission time | 20 y |
-
