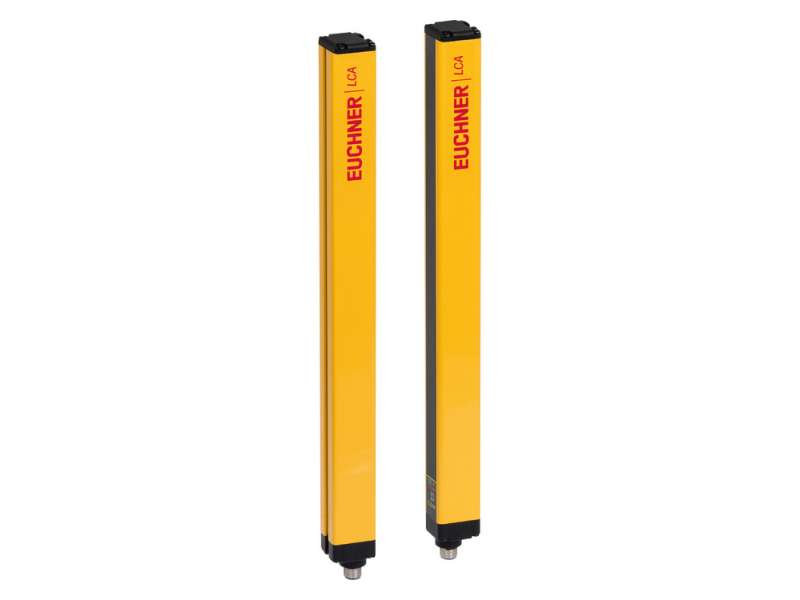

EUCHNER Light grid LCA-2TR-3B-810 ; 156672

Three beams Protective field height 810 mm Range 12 m With plug connector M12 Two safety outputs (OSSD) Installation material is included with the product...

Brand: EUCHNER
Šifra: 156672
Dostupnost: Proveriti dostupnost
Cena na upit
  • Three beams
  • Protective field height 810 mm
  • Range 12 m
  • With plug connector M12
  • Two safety outputs (OSSD)
  • Installation material is included with the product

Approvals

Richtlinie CEZulassung TÜV Süd, BMPB mit ZG: Safety tested, Production monitored, Functional SafetyZulassung c_UL_us LISTED

Mechanical values and environment

Number of safety outputs 2 Static, self-monitoring PNP safety outputs
Height of the protective field 810 mm
Height of the sensor 953 mm
Maximum length of connecting cables 100 m
Range of the protective field 12000 mm
Number of beams 3

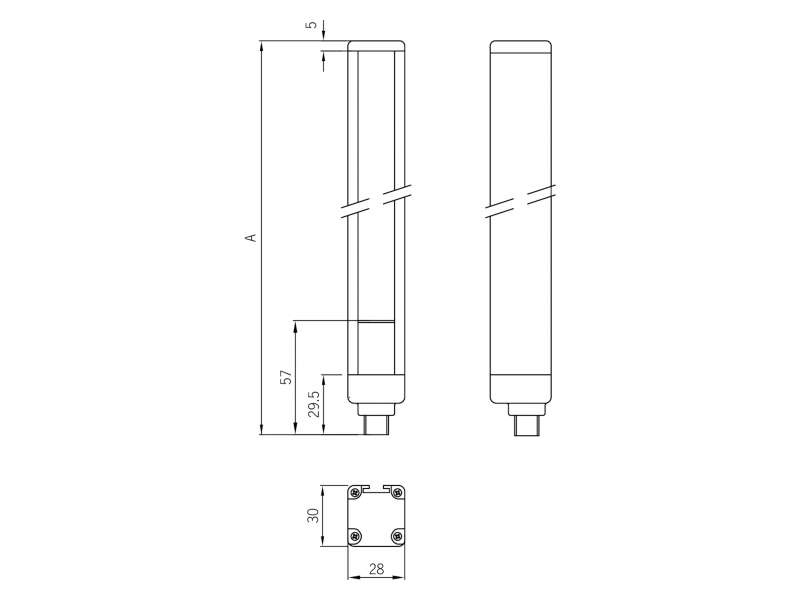

Dimensions 28x30 mm
Ambient temperature -30 ... 55 °C
Degree of protection IP65 / IP67
Installation orientation Any
Reaction time 3,5 ms

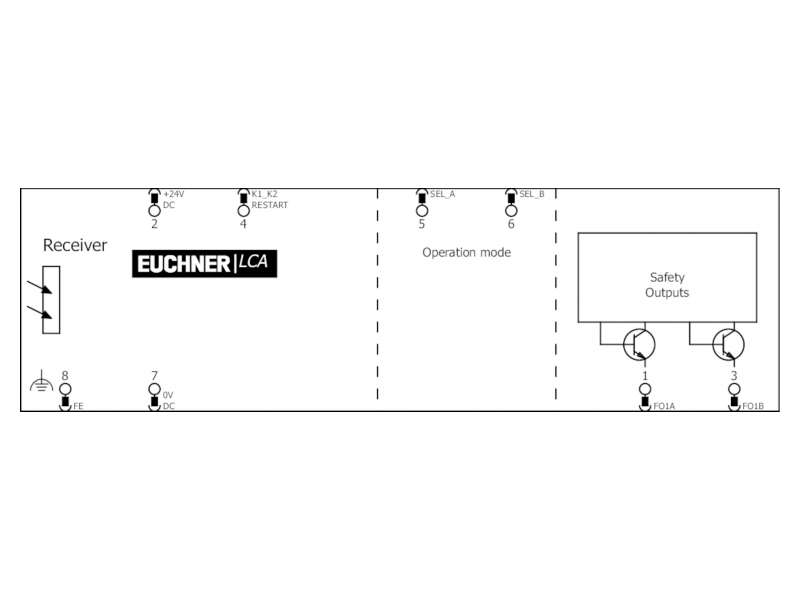

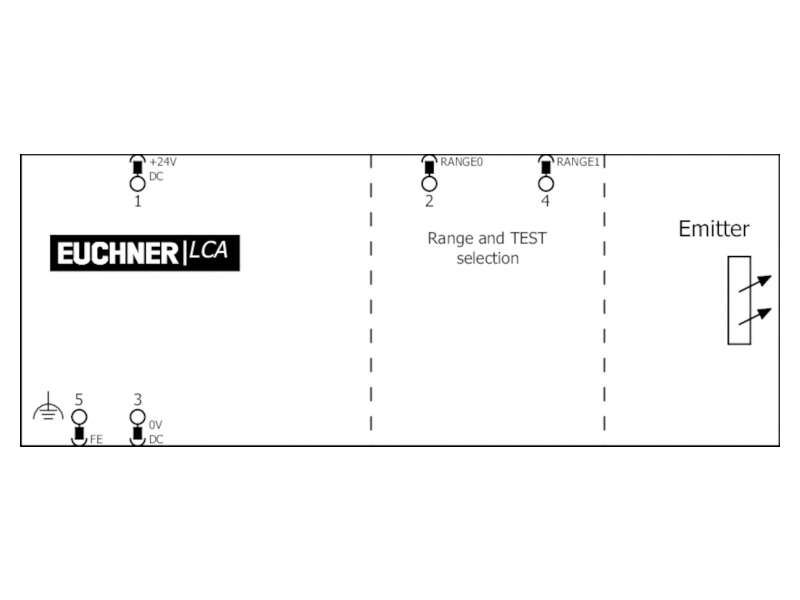

Connection Plug connector M12 (5-pin transmitter / 8-pin receiver)

Electrical connection ratings

Cascadable No
Muting possible In combination with external sensors and an evaluation unit
Operating voltage DC 24 V DC -20% ... +20%
Current consumption 400 mA
Power consumption
Transmitter 1 W
Receiver 2 W
LED display Yes

Reliability values according to EN ISO 13849-1

ESPE type 2
Performance Level PL c
PFHD 1,87x10-8
Safety Integrity Level SIL 1 / SILCL 1
Mission time 20 y
