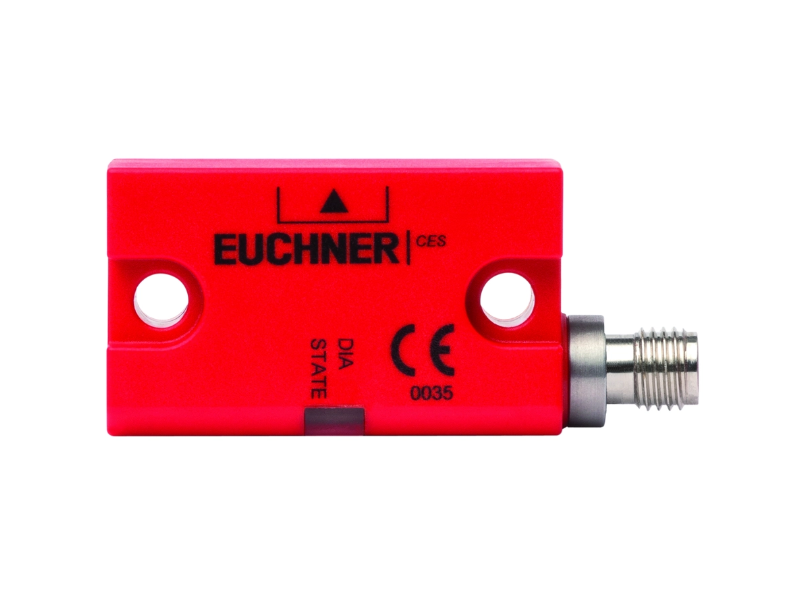

Non-contact safety switches CES-I-AR-.-C04-…, M8
- Safety switch with integrated evaluation electronics
- Up to 20 switches in series
- Short circuit monitoring
- 2 safety outputs (semiconductor outputs)
- Category 4 / PL e according to EN ISO 13849-1
- Three active faces
- Plug connector M8, 8-pin
- Fixcode evaluation
- Actuator CES-A-BBN-C04-115271 included
Approvals
Workspace
| Repeat accuracy R | |
| according to EN 60947-5-2 | <= 10 |
Electrical connection values
| Fuse | |
| external (operating voltage) | 0.25 ... 8 A |
| Rated insulation voltage Ui | 300 V |
| Rated impulse withstand voltage Uimp | 1.5 kV |
| Operating voltage DC | |
| UB | 24 V DC -15% ... +15% regulated, residual ripple<5%, PELV |
| Turn-on time | |
| Safety outputs | max. 400 ms |
| EMC protection requirements | Acc. to EN IEC 60947-5-3 |
| Risk time according to EN 60947-5-3 | max. 260 ms |
| Risk time according to EN 60947-5-3, extension for each additional device | max. 5 ms |
| Safety class | III |
| Current consumption | max. 35 mA |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Monitoring output OD | |
| Output type | Semiconductor output, p-switching, short circuit-proof |
| Output voltage | 0.8 x UB ... UB V DC |
| Switching current | max. 50 mA |
| Safety outputs FO1A / FO1B | |
| Output type | Semiconductor outputs, p-switching, short circuit-proof |
| Output voltage | |
| HIGH U(FO1A) / U(FO1B) | UB-1.5V ... UB V DC |
| LOW U(FO1A) / U(FO1B) | 0 ... 1 V DC |
| rated conditional short-circuit current | 100 A |
| Discrepancy time | max. 10 ms |
| Utilization category | |
| DC-13 | 24 V 200 mA |
| Off-state current Ir | max. 0.25 mA |
| Switching current | |
| per safety output | 1 ... 200 mA |
| Test pulse duration | max. 1.0 ms |
| Test pulse interval | min. 140 ms |
Mechanical values and environment
| Connection type | M8 plug connector, 8-pin |
| Tightening torque | |
| Fixing screws | max. 0.8 Nm |
| Ready delay | 10 s |
| Installation orientation | any |
| Switching frequency | max. 1 Hz |
| Mounting distance | |
| between 2 switches or 2 actuators | min. 80 mm |
| Mounting type | Surface mounting on metal |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP67/IP69K |
| Ambient temperature | -25 ... +65 °C |
| Material | |
| Housing | Plastic, PBT |
| Rubber support | NBR 80 ±5 Shore |
Miscellaneous
| The following applies to the approval according to UL | Operation only with UL Class 2 power supply or equivalent measures |
| Additional feature | Rubber support included |
Actuator CES-A-BBN-C04-115271 (Order no. 115271)
Electrical connection values
| Power supply | Inductive via read head |
Mechanical values and environment
| Tightening torque | |
| Fixing screws | max. 0.8 Nm |
| Installation orientation | active face opposite read head |
| Degree of protection | IP67/IP69K |
| Ambient temperature | -25 ... +65 °C |
| Material | |
| Housing | Plastic (PBT) |
| Rubber support | NBR 80 ±5 Shore |
Components included in the set
| Included accessories | 2x safety screws M4x20 |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| PL | Maximum SIL | PFHD | Category | Mission time | |
|---|---|---|---|---|---|
| Monitoring of the guard position | PL e | - | 4.1x10-9 | 4 | 20 y |
In combination with actuator CES-A-BBN-C04-115271
| Switch-on distance | |
| Installation position A or B (front side) | 15 mm |
| Installation position C or D (broad side) | 11 mm |
| Secured switch-off distance sar | |
| in x/z direction | max. 40 mm |
| in y direction | max. 60 mm |
| Secured switching distance sao | |
| Installation position A or B (front side) | 10 mm |
| Installation position C or D (broad side) | 6 mm |
| Switching hysteresis | 1 ... 2 mm |
