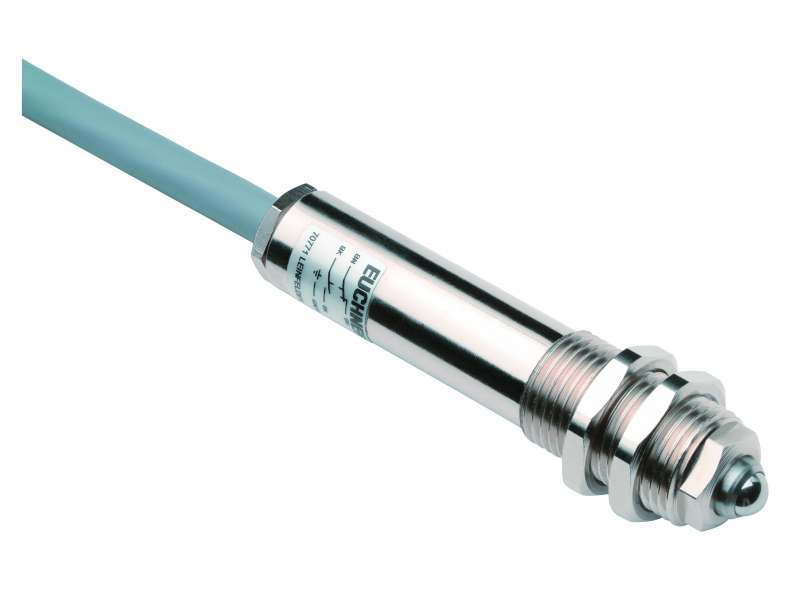

EUCHNER Precision single hole fixing limit switch EGT2-5000 ; 001865

EUCHNER Precision single hole fixing limit switch EGT2-5000 ; 001865

Precision single hole fixing limit switch EGT2-5000 ; 001865 with snap-action switching element Plunger material stainless steel Any installation orientation...

Brand: EUCHNER
Šifra: 001865
Dostupnost: Proveriti dostupnost
Cena na upit
Precision single hole fixing limit switch EGT2-5000 ; 001865
  • with snap-action switching element
  • Plunger material stainless steel
  • Any installation orientation

Approvals

EAC_RU C-DE.MO05.B.00971/20CCC_2020980305000536_CQC2013010305627342_Version 2023c_UL_us_E155795_3/6

Electrical connection values

Connection cross section 0.75 mm²
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category
AC-15 2 A 230 V
DC-13 1 A 24 V
Short circuit protection according to IEC 60269-1 2A gG
Switching voltage
min. 12 V
Switching current
min. at 24 V 10 mA

Mechanical values and environment

Approach speed 0.01 ... 10 m/min
Connection type PUR cable
Number NC contacts 1
Number of NO contacts 1
Design Thread M18 x 1
Actuating element Ball plunger
Actuating force
approx. 24 N
Installation orientation any
Cable length 5 m
Mechanical life 1 x 10⁶
Switching principle Snap-action switching contact
Degree of protection IP67
Ambient temperature -5 ... +60 °C
Material
Threaded section Brass, nickel plated
Sleeve Brass, nickel plated
Contact Fine silver, gold plated
Repeat accuracy (absolute) ±0.01 mm
