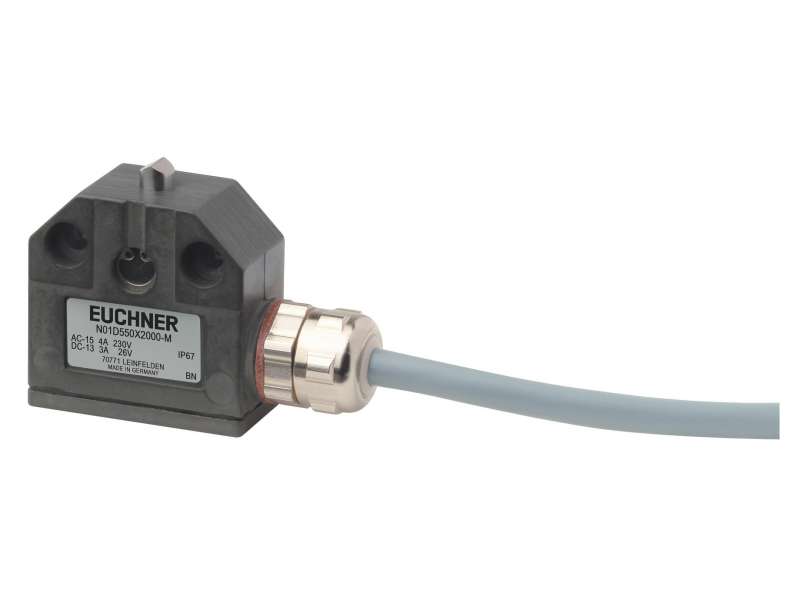

EUCHNER Precision Single Limit Switch N01D550X5000-M ; 088978

Precision single limit switch N01, chisel plunger, connection cable Plunger material stainless steel...

Brand: EUCHNER
Šifra: 088978
Dostupnost: Proveriti dostupnost
Cena na upit

               Precision single limit switch N01, chisel plunger, connection cable

  • Plunger material stainless steel

Approvals

Zulassung EAC

Mechanical values and environment

Housing material Anodized die-cast alloy
Weight
Net 0,5 kg
Ambient temperature -5 ... 80 °C
Degree of protection IP67
Mechanical life 10 x 106
Contact material Silver alloy, gold flashed

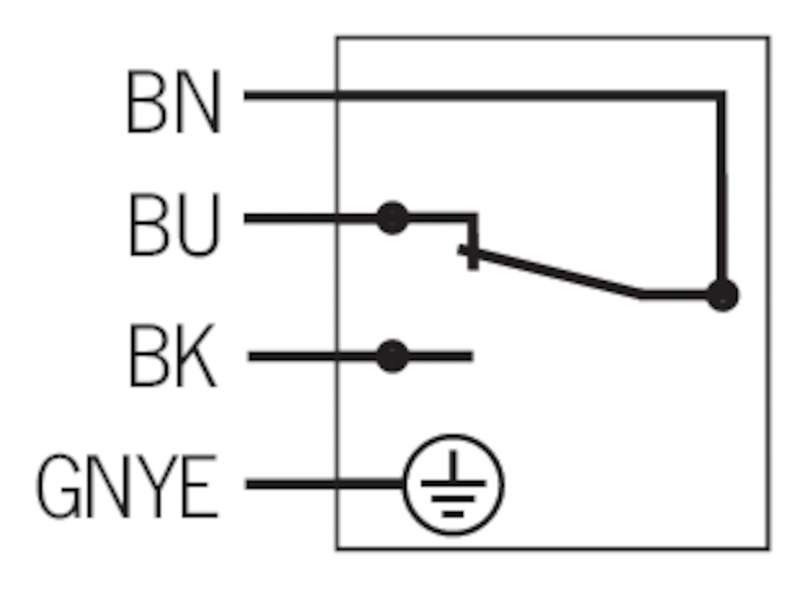

Switching principle Changeover contact with snap-action function
Installation orientation Any
Number of door position NC contacts 1 Changeover contact
Number of door position NO contacts 1
Connection
1 x Cable
Approach speed 0,01 ... 20 m/min
Actuating element Chisel plunger
Actuating force 15 ... 20 N

Electrical connection ratings

Thermal rated current Ith 6 A
Utilization category according to EN 60947-5-1
AC-15 2A 230V
DC-13 2A 24V
Short circuit protection according to IEC 60269-1
(Fuse) 6A gG
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2,5 kV
Switching current
Min. at DC 24V 10 mA
Connection cross-section
4x 0,5 mm²

Other

Additional feature Connection cable 5m
  • Limit Switches Instructions

    Limit Switches Instructions
