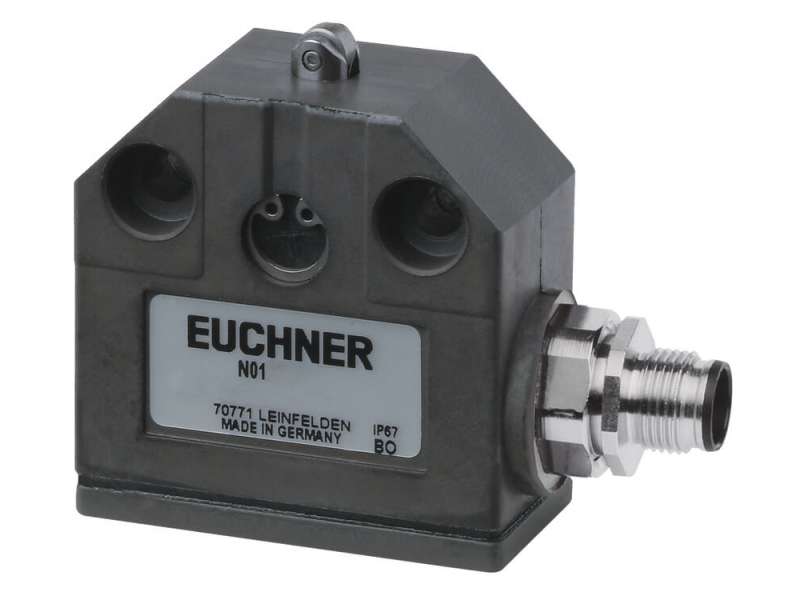

EUCHNER Precision Single Limit Switch N01R562SVM5-M ; 093426

Precision single limit switch N01, roller plunger, plug connector M12 Plunger material stainless steel...

Brand: EUCHNER
Šifra: 093426
Dostupnost: Proveriti dostupnost
Cena na upit

               Precision single limit switch N01, roller plunger, plug connector M12

  • Plunger material stainless steel

Approvals

Zulassung EAC

Mechanical values and environment

Housing material Anodized die-cast alloy
Weight
Net 0,07 kg
Ambient temperature -5 ... 80 °C
Degree of protection IP64
Mechanical life 15 x 106
Contact material Gold alloy, gold cross-cutting contact

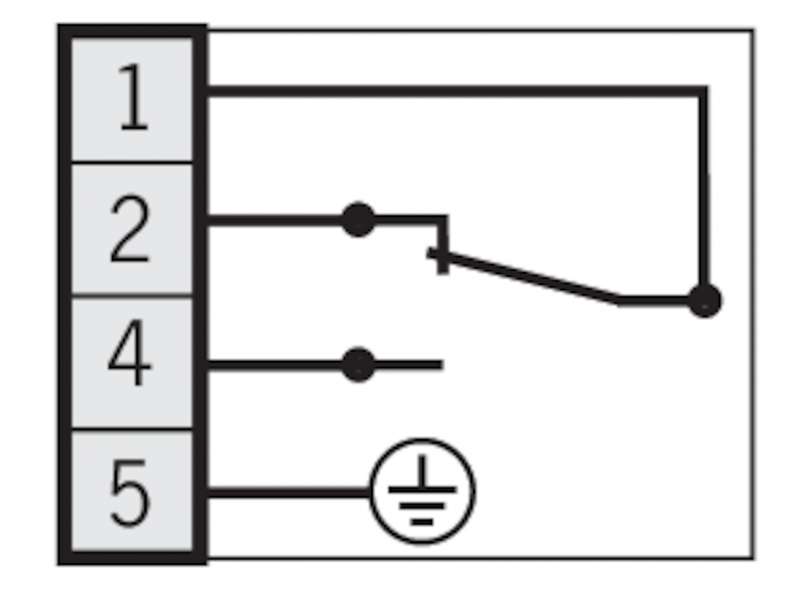

Switching principle Changeover contact with snap-action function
Installation orientation Any
Number of door position NC contacts 1 Changeover contact
Number of door position NO contacts 1
Connection
1 x Plug connector M12, adjustable
Approach speed 0,01 ... 50 m/min
Actuating element
Plain bearing metal Roller plunger
Actuating force 15 ... 20 N

Electrical connection ratings

Thermal rated current Ith 0,1 A
Utilization category according to EN 60947-5-1
DC-13 100mA 30V
AC-12 100mA 30V
Short circuit protection according to IEC 60269-1
(Fuse) 0.125A gG
Rated insulation voltage Ui 50 V
Rated impulse withstand voltage Uimp 1,5 kV
Switching current
Min. at DC 5V 5 mA
  • Limit Switches Instructions

    Limit Switches Instructions
