EUCHNER Precision Single Limit Switch SN01R558SVM5-M ; 088626

Precision single limit switch SN01, roller plunger, plug connector M12 Plunger material stainless steel...

Brand: EUCHNER
Šifra: 088626
Dostupnost: Proveriti dostupnost
Cena na upit

                 Precision single limit switch SN01, roller plunger, plug connector M12

  • Plunger material stainless steel

Approvals

Zulassung EAC

Mechanical values and environment

Housing material Anodized die-cast alloy
Weight
Net 0,1 kg
Ambient temperature -5 ... 80 °C
Degree of protection IP67
Mechanical life 10 x 106
Contact material Silver alloy, gold flashed
Switching principle Snap-action switching contact
Installation orientation Any

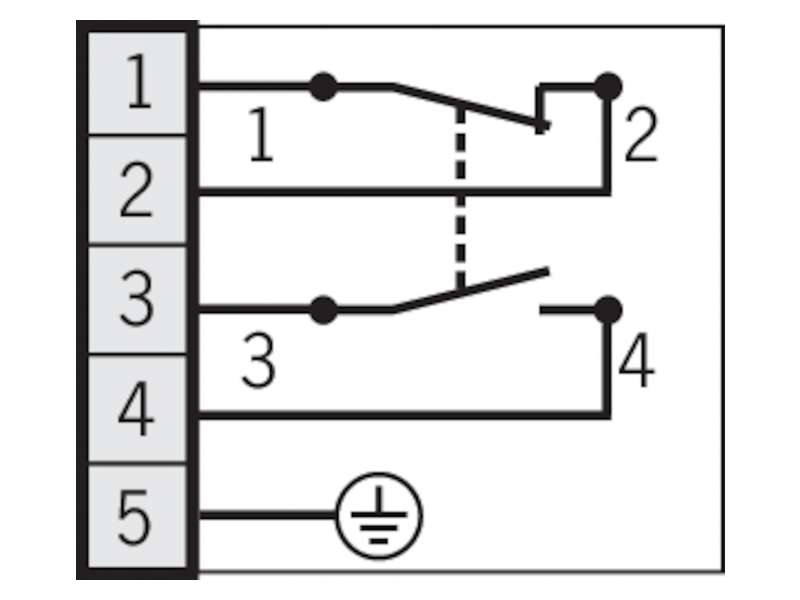

Number of door position NC contacts 1
Number of door position NO contacts 1
Connection

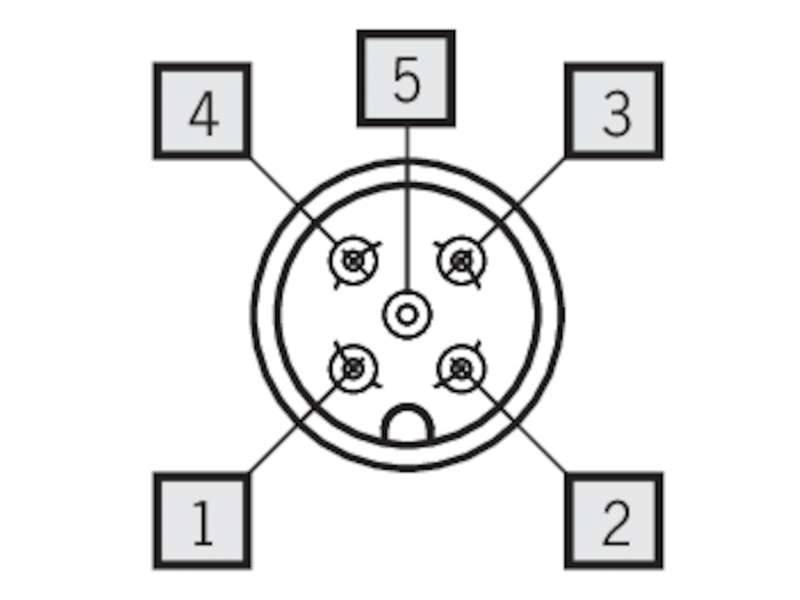

1 x Plug connector M12, adjustable
Approach speed 0,01 ... 50 m/min
Actuating element
Plain bearing metal Roller plunger
Actuating force 15 ... 20 N

Electrical connection ratings

Thermal rated current Ith 4 A
Utilization category according to EN 60947-5-1
AC-15 4A 30V
DC-13 3A 24V
Short circuit protection according to IEC 60269-1
(Fuse) 4A gG
Rated insulation voltage Ui 50 V
Rated impulse withstand voltage Uimp 1,5 kV
Switching current
Min. at DC 5V 10 mA
  • Limit Switches Instructions

    Limit Switches Instructions
