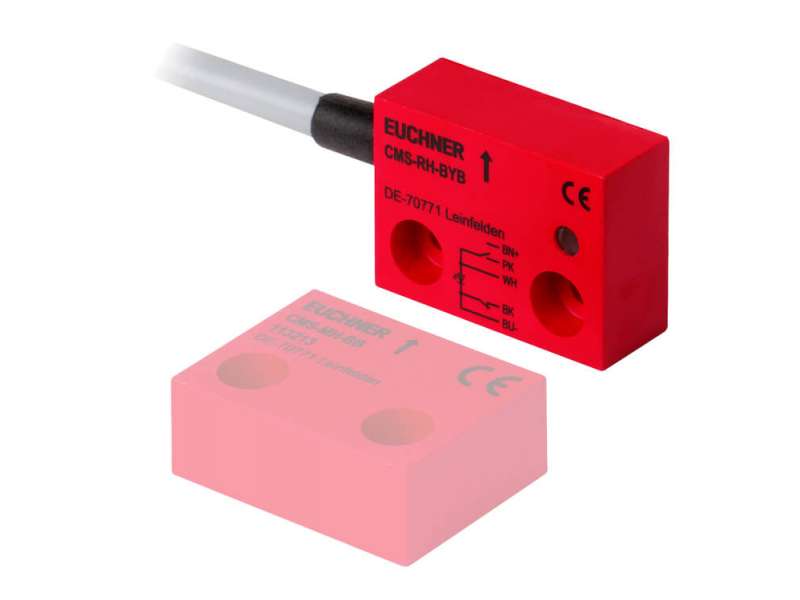

EUCHNER Read Heads CMS ; CMS-R-BXI-07P ; 115117
Read heads CMS design B - with NC/NO contacts, PUR.. In combination with evaluation units CMS-E-BR/CMS-E-ER/CMS-E-FR Cube-shaped version 36 x 26 mm Connection cable...
Cena na upit
Read heads CMS design B - with NC/NO contacts, PUR..
- In combination with evaluation units CMS-E-BR/CMS-E-ER/CMS-E-FR

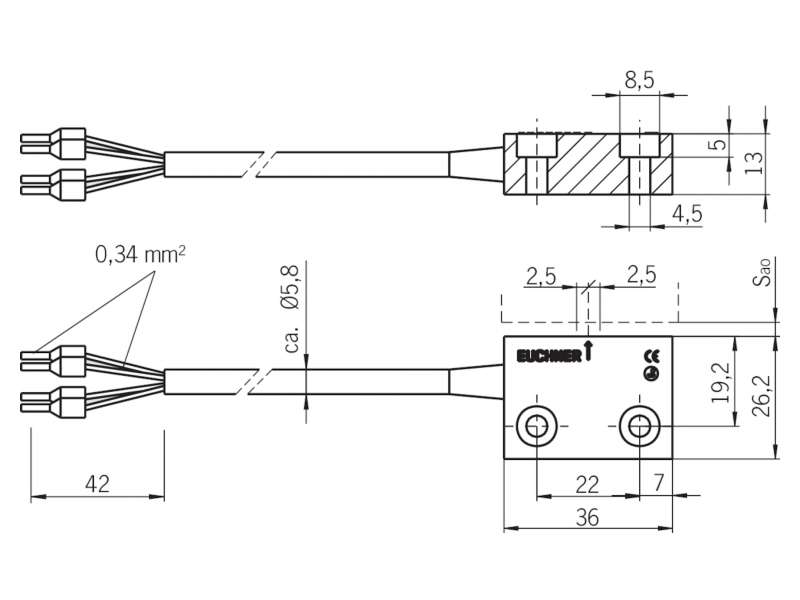

- Cube-shaped version 36 x 26 mm
- Connection cable
- Cable type: PUR
Approvals
Mechanical values and environment
| Design | B |
| Material | |
| Cable material | PUR |
| Housing material | Fiber glass reinforced PPS |
| Weight | |
| Net | 0,34 kg |
| Ambient temperature | -20 ... 60 °C |
| Degree of protection | IP67 |
| Resilience to vibration | In acc. with EN 60947-5-2 |
| Mechanical life | 100 x 106 |
| Installation orientation | Any, pay attention to marking |
| Tightening torque | 0,4 ... 0,5 Nm |
| Number of NC contacts | 1 NC contact |
| Number of NO contacts | 1 NO contact |
| Connection | Hard-wired encapsulated cable with cable end sleeves 0.34mm2 |
| Cable length | 7 m |
| Method of operation | Magnetic, reed contact |
Electrical connection ratings
| Rated insulation voltage Ui | 26,4 V DC |
| Rated impulse withstand voltage Uimp | 1,5 kV |
| Switching voltage | 24 V |
| Switching current | 8 ... 500 mA |

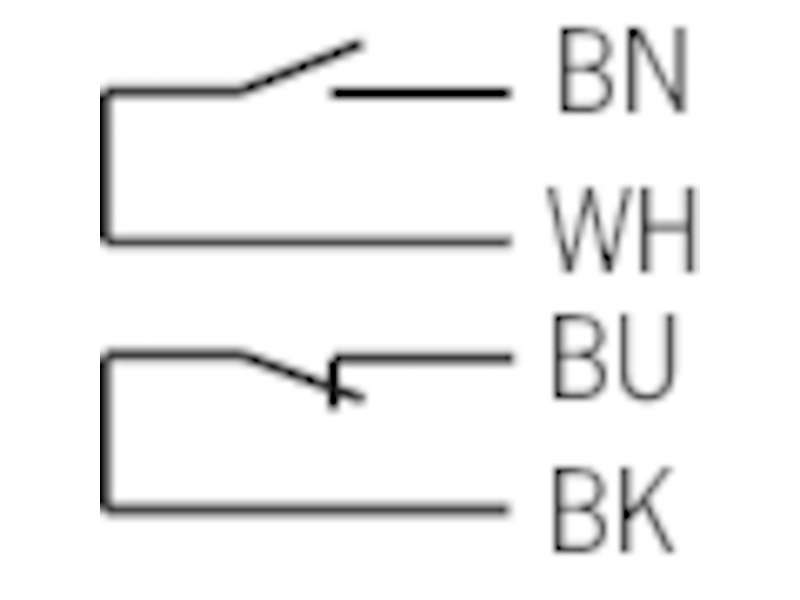

| Switching characteristics | NO + NC |
| Switching voltage according to UL | |
| According to UL Class 2 | max.24 V AC/DC |
Work area
| Repeat accuracy R | max.10 % |
Other
| In compliance with | EN ISO 13849-1:2015; EN 50178:1997; EN 60204-1:2006/A1:2009; EN ISO 14119:2013; EN 61000-6-2:2005; EN 61000-6-3:2007/A1:2011; EN 60947-5-3:2013 |
