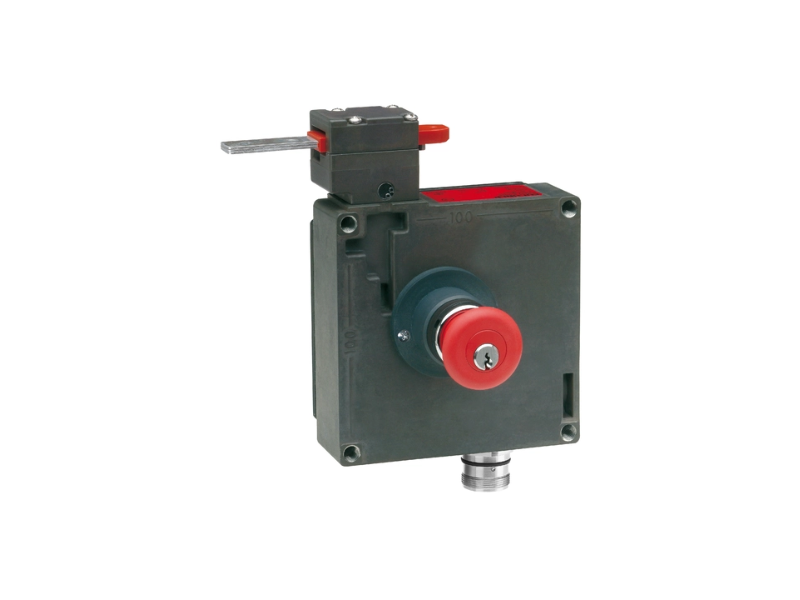

EUCHNER Safety switch TZ1LE024BHA10VAB-C2402; 119611
Safety switch TZ, plug connector MR10, with escape release Escape release on the rear side with key button Two LED displays, red and green Plug connector MR10 Actuating...
Cena na upit
Safety switch TZ, plug connector MR10, with escape release
- Escape release on the rear side with key button
- Two LED displays, red and green
- Plug connector MR10
- Actuating head fitted left
Approvals
Operating and display elements
| LED display | Operating voltage corresponds to the solenoid voltage |
Electrical connection values
| Power consumption | 10 W |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Utilization category | |
| DC-13 | 4 A 24 V |
| AC-15 | 4 A 230 V |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Solenoid operating voltage | |
| AC/DC | 24 V -15% ... +10% |
| Solenoid duty cycle | 100 % |
| Switching voltage | |
| min. at 10 mA | 12 V |
| Switching current | |
| min. at 24 V | 1 mA |
| thermal rated current Ith | 4 A |
Mechanical values and environment
| Approach speed | max. 20 m/min |
| Approach direction | |
| Actuating head left | C |
| Connection type | |
| 1 x | Plug connector BHA10 |
| Number of guard lock monitoring NO contacts | 1 |
| Number of door position positively driven contacts | 3 |
| Number of guard lock monitoring positively driven contacts | 2 |
| Extraction force | 30 N |
| Actuation frequency | max. 1200 1/h |
| Actuating force | 35 N |
| Lid | Red |
| Installation orientation | any |
| Insertion depth | 52 mm |
| Mechanical life | 1 x 10⁶ |
| Retention force | 10 N |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP65 |
| Ambient temperature | -25 ... +80 °C |
| Material | |
| Contact | Silver alloy, gold flashed |
| Housing | Anodized die-cast alloy |
| Locking force Fmax | 2000 N |
| Locking force FZh | 1500 N |
| Guard locking principle | Closed-circuit current principle |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| B10D | Mission time | |
|---|---|---|
| Monitoring of the guard position | 3x106 | 20 y |
| Important! Values valid at DC-13 100 mA/24V | ||
| PL | Maximum SIL | Category | Mission time | |
|---|---|---|---|---|
| Control of guard locking | Depending on external control of guard locking | 20 y | ||
Miscellaneous
| C number | |
| C2402 | without auxiliary release, special wiring, 2 safety screws for actuating head included |
In combination with actuator ACTUATOR-Z-GN
| Overtravel | 16 mm |
In combination with actuator ACTUATOR-Z-G
| Overtravel | 4 mm |
