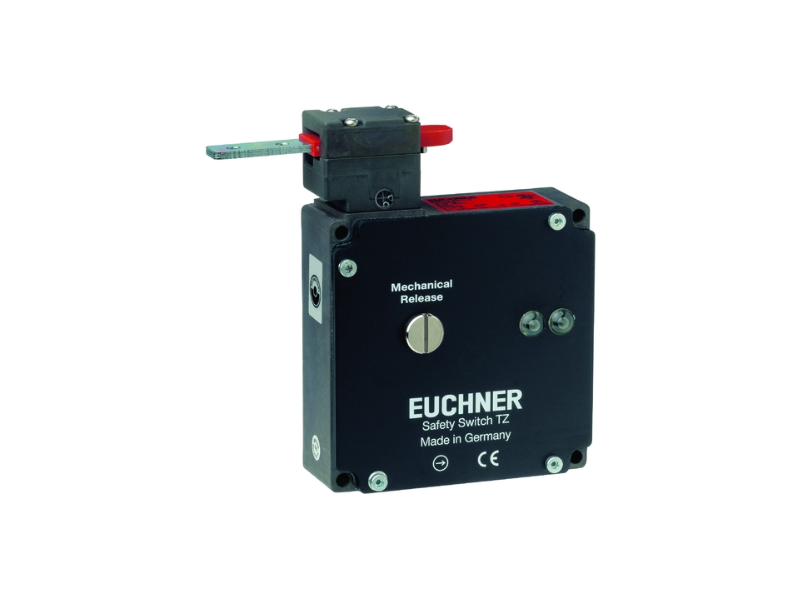

EUCHNER Safety switch TZ1LE024MVFG-RC1925; 089464
Safety switch TZ Auxiliary release on the front Two LED displays, red and green Actuating head fitted left...
Cena na upit
Safety switch TZ
- Auxiliary release on the front
- Two LED displays, red and green
- Actuating head fitted left
Approvals
Operating and display elements
| LED display | Operating voltage corresponds to the solenoid voltage |
Electrical connection values
| Power consumption | 10 W |
| Connection cross section | 0.34 ... 1.5 mm² |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Utilization category | |
| AC-15 | 4 A 230 V |
| DC-13 | 4 A 24 V |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Solenoid operating voltage | |
| AC/DC | 24 V -15% ... +10% |
| Solenoid duty cycle | 100 % |
| Switching voltage | |
| min. at 10 mA | 12 V |
| Switching current | |
| min. at 24 V | 1 mA |
| thermal rated current Ith | 4 A |
Mechanical values and environment
| Approach speed | max. 20 m/min |
| Approach direction | |
| Actuating head left | C |
| Connection type | |
| 1 x | M20 x 1.5 |
| Number of door position positively driven contacts | 4 |
| Number of guard lock monitoring positively driven contacts | 4 |
| Extraction force | 30 N |
| Actuation frequency | max. 1200 1/h |
| Actuating force | 35 N |
| Lid | Red |
| Installation orientation | any |
| Insertion depth | 52 mm |
| Mechanical life | 1 x 10⁶ |
| Retention force | 10 N |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +80 °C |
| Material | |
| Housing | Anodized die-cast alloy |
| Contact | Silver alloy, gold flashed |
| Locking force Fmax | 2000 N |
| Locking force FZh | 1500 N |
| Guard locking principle | Closed-circuit current principle |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| B10D | Mission time | |
|---|---|---|
| Monitoring of the guard position | 3x106 | 20 y |
| Important! Values valid at DC-13 100 mA/24V | ||
| PL | Maximum SIL | Category | Mission time | |
|---|---|---|---|---|
| Control of guard locking | Depending on external control of guard locking | 20 y | ||
Miscellaneous
| C number | |
| C1925 |
In combination with actuator ACTUATOR-Z-G
| Overtravel | 4 mm |
In combination with actuator ACTUATOR-Z-GN
| Overtravel | 16 mm |
