EUCHNER Safety switch TZ1LE024RC18VAB-C1828; 090352
Safety switch TZ, plug connector RC18, escape release with key button Auxiliary release on the front Escape release on the rear side with key button Two LED displays,...
Cena na upit

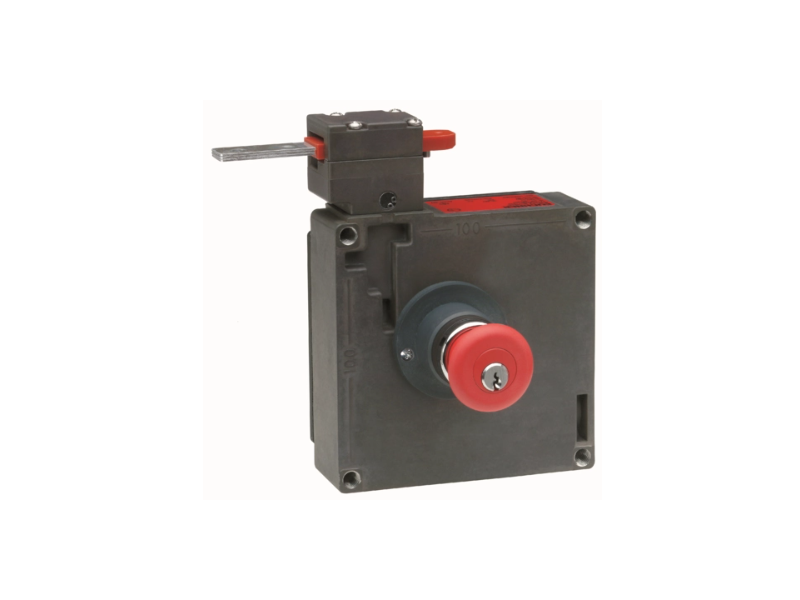

Safety switch TZ, plug connector RC18, escape release with key button
- Auxiliary release on the front
- Escape release on the rear side with key button
- Two LED displays, red and green
- Plug connector M23 (RC18)
- Actuating head fitted left
Approvals
Operating and display elements
| LED display | Operating voltage corresponds to the solenoid voltage |
Electrical connection values
| Power consumption | 10 W |
| Rated insulation voltage Ui | 110 V |
| Rated impulse withstand voltage Uimp | 1.5 kV |
| Utilization category | |
| AC-15 | 4 A 110 V |
| DC-13 | 4 A 24 V |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Solenoid operating voltage | |
| AC/DC | 24 V -15% ... +10% |
| Solenoid duty cycle | 100 % |
| Switching voltage | |
| min. at 10 mA | 12 V |
| Switching current | |
| min. at 24 V | 1 mA |
| thermal rated current Ith | 4 A |
Mechanical values and environment
| Approach speed | max. 20 m/min |
| Approach direction | |
| Actuating head left | C |
| Connection type | |
| 1 x | Plug connector RC18 |
| Number of door position NO contacts | 1 |
| Number of guard lock monitoring NO contacts | 2 |
| Number of door position positively driven contacts | 3 |
| Number of guard lock monitoring positively driven contacts | 2 |
| Extraction force | 30 N |
| Actuation frequency | max. 1200 1/h |
| Actuating force | 35 N |
| Lid | black |
| Installation orientation | any |
| Insertion depth | 52 mm |
| Mechanical life | 1 x 10⁶ |
| Retention force | 10 N |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP65 |
| Ambient temperature | -25 ... +80 °C |
| Material | |
| Contact | Silver alloy, gold flashed |
| Housing | Anodized die-cast alloy |
| Locking force Fmax | 2000 N |
| Locking force FZh | 1500 N |
| Guard locking principle | Closed-circuit current principle |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| B10D | Mission time | |
|---|---|---|
| Monitoring of the guard position | 3x106 | 20 y |
| Important! Values valid at DC-13 100 mA/24V | ||
| PL | Maximum SIL | Category | Mission time | |
|---|---|---|---|---|
| Control of guard locking | Depending on external control of guard locking | 20 y | ||
Miscellaneous
| C number | |
| C1828 | with escape release, special wiring |
In combination with actuator ACTUATOR-Z-GN
| Overtravel | 16 mm |
In combination with actuator ACTUATOR-Z-G
| Overtravel | 4 mm |
