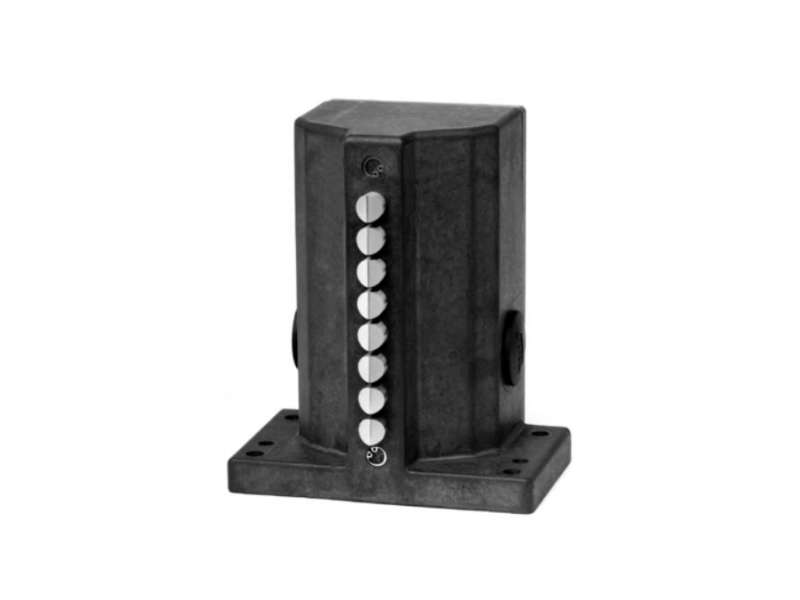

EUCHNER Series RGBF... 12 mm, mechanical RGBF05R12-2514-M (Order no. 090626)

EUCHNER Series RGBF... 12 mm, mechanical RGBF05R12-2514-M (Order no. 090626)

Series RGBF... 12 mm, mechanical RGBF05R12-2514-M (Order no. 090626) Plunger spacing 12 mm Upright housing according to DIN 43697 Degree of protection IP67 according...

Brand: EUCHNER
Šifra: 090626
Dostupnost: Proveriti dostupnost
Cena na upit
Series RGBF... 12 mm, mechanical RGBF05R12-2514-M (Order no. 090626)
  • Plunger spacing 12 mm
  • Upright housing according to DIN 43697
  • Degree of protection IP67 according to IEC 60529

Approvals

EAC_RU C-DE.MO05.B.00971/20c_UL_us_E155795_3/6CCC_2020980305000540_CQC2008010305306206

Electrical connection values

Connection cross section 0.34 ... 1.5 mm²
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category
AC-12 8 A 250 V
AC-15 2.5 A 230 V
DC-13 6 A 24 V
AC-15 6 A 250 V
Short circuit protection according to IEC 60269-1
  6A gG
  8A gG
Switching current
min. at DC 12V min. 10 mA
min. at DC 24V min. 5 mA
thermal rated current Ith 8 A

Mechanical values and environment

Approach speed 0.01 ... 80 m/min
Connection type
4 x M25 x 1.5
Number NC contacts 3
Number of switching elements 5
Number of NO contacts 5
Number of positively driven contacts 2
Design upright, according to DIN 43697
Actuating element
Slide bearing Roller plunger
Actuating force min. 30 N
Installation orientation any
Mechanical life 1 x 10⁶
Switching principle
  Snap-action switching contact
  Snap-action switching contact
Degree of protection IP67
Plunger spacing 12 mm
Ambient temperature -5 ... +80 °C
Material
Housing Sand-cast aluminum, anodized
Contact Silver alloy, gold flashed

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10D 2 x 10⁶

Miscellaneous

Additional information Mixed contact assembly
