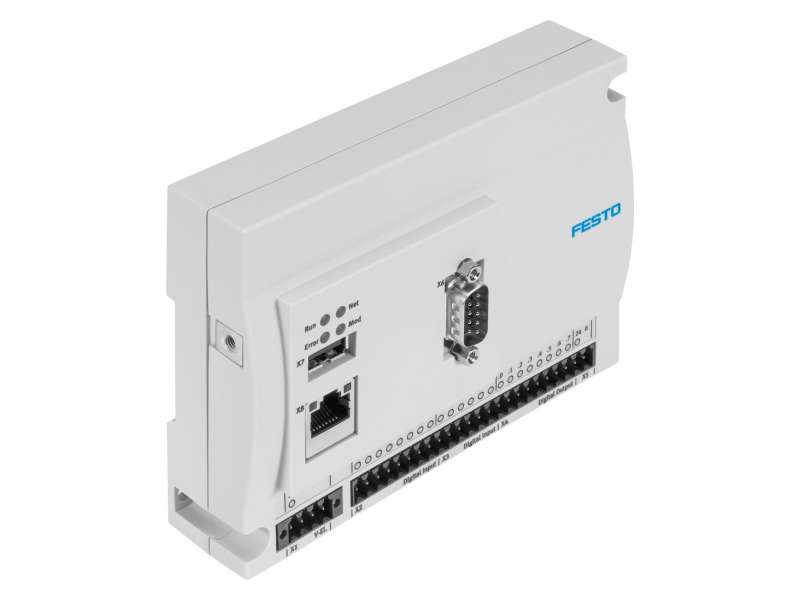

Festo Control CECC-D ; 574415
Besides an IO-Link® master and device interface, the compact and highly versatile controller with CODESYS also offers a digital I/O or serial interface module....
Cena na upit
Besides an IO-Link® master and device interface, the compact and highly versatile controller with CODESYS also offers a digital I/O or serial interface module. CECC provides asynchronous PTP control of up to 4 individual axes.
- Compact programmable logic controller
- Programming with CODESYS to IEC 61131-3
- 12 digital inputs, 8 digital outputs, additionally 2 high-speed counters up to 250 kHz
- Ethernet 10/100 Mbit/s
- USB interface for data transfer
- CECC-LK with CANopen, IO-Link®, I-Port, and Modbus TCP protocol
- Type code
- CECC
- Certificate issuing authority
- UL E239998-D1001
- Max. power supply
- 4.3 A
- Nominal operating voltage DC
- 24 V
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Certification
-
RCM compliance mark
c UL us - Listed (OL) - Note on materials
- RoHS-compliant
- Operating voltage
- 19.2 - 30 V DC
- Current consumption
- 100 mA nominal at 24 V DC
- Ambient temperature
- 0 °C ... 55 °C
- Storage temperature
- -25 °C ... 70 °C
- Relative air humidity
-
95 %
Non-condensing - Degree of protection
- IP20
- Protection class
- III
- Product weight
- 200 g
- Resistance to vibration
- as per EN 61131-2
- Resistance to shock
- as per EN 61131-2
- Electrical connection technology I/O
- Socket strip, 3.5 mm grid
- Status indications
- LED
- CPU data
- 400 MHz processor
- Digital inputs, number
- 12
- Digital inputs, switching logic
- Positive logic (PNP)
- Digital inputs, fast clock pulse inputs
- 2, each with max. 180 kHz
- Digital inputs, input signal delay
- 3 ms typ.
- Digital inputs, input voltage/current
- 24 V DC
- Digital inputs, nominal value for TRUE
- >= 15 V DC
- Digital inputs, nominal value for FALSE
- <= 5 V DC
- Digital inputs, electrical isolation
- Yes, optocoupler
- Digital inputs, status indication
- LED
- Digital outputs, number
- 8
- Digital outputs, switching logic
- Positive logic (PNP)
- Digital outputs, contact
- Transistor
- Digital outputs, output voltage
- 24 V DC
- Digital outputs, output current
- 500 mA
- Digital outputs, potential separation
- Yes, optocoupler
- Digital outputs, switching frequency
- max. 1 kHz
- Digital outputs, short circuit proof
- yes
- Digital outputs, status indication
- LED
- Protocol
-
Modbus® TCP
CANopen - Fieldbus interface, type
- CAN bus
- Fieldbus interface, connection technology
-
9-pin
Sub-D
Plug - Fieldbus interface, transmission rate
-
125, 250, 500, 800, 1000 kbit/s
Adjustable via software - Fieldbus interface, galvanic isolation
- yes
- USB interface
- USB 1.1
- Ethernet, connector plug
- RJ45
- Ethernet, number
- 1
- Ethernet, data transmission speed
- 10/100 Mbit/s
- Ethernet, supported protocols
- TCP/IP, EasyIP, Modbus® TCP
- Programming software
- CODESYS provided by Festo V3
- Programming language
-
AWL
AS
ST
KOP
FUP
as per IEC 61131-3 - CE marking (see declaration of conformity)
- As per EU EMC directive
-
574415datasheet
-
CECC ENUS
