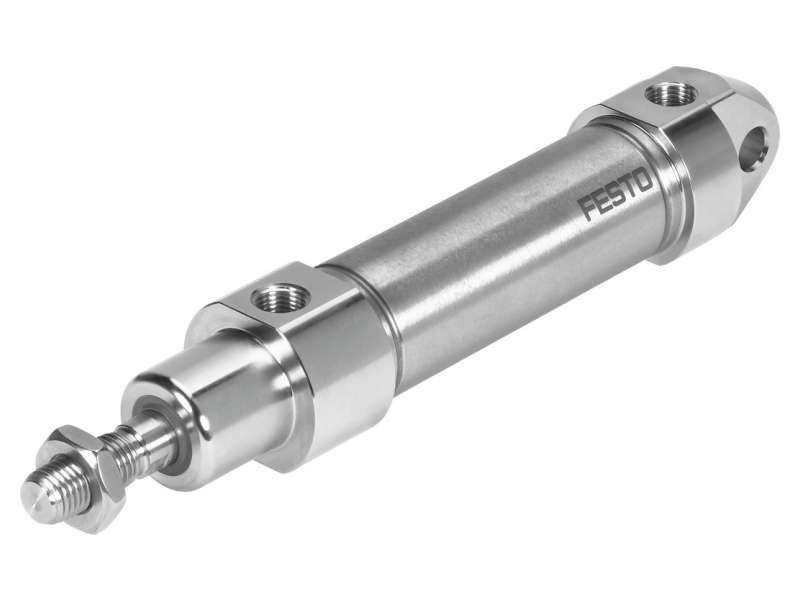

Festo ISO cylinder CRDSNU-B-16-40-P-A-MG-A1 ; 8073761
With NSF-H1 grease and a clean design. Very reliable and durable due to dry-running seal. And always correctly adjusted thanks to the self-adjusting end position...
Cena na upit
With NSF-H1 grease and a clean design. Very reliable and durable due to dry-running seal. And always correctly adjusted thanks to the self-adjusting end position cushioning system PPS – without the dirt-prone adjusting screw.
- Corrosion resistant against aggressive ambient conditions
- Easy-to-clean design
- Long service life thanks to optional dry-running seal
- Wide range of variants for customized applications
- Self-adjusting pneumatic end-position cushioning which adapts optimally to changes in load and speed
- Maritime classification
- See certificate
- Stroke
- 40 mm
- Piston diameter
- 16 mm
- Type code
- CRDSNU-B
- Based on norm
- ISO 6432
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Design
-
Piston
Piston rod
Cylinder barrel - Position sensing
- For proximity sensor

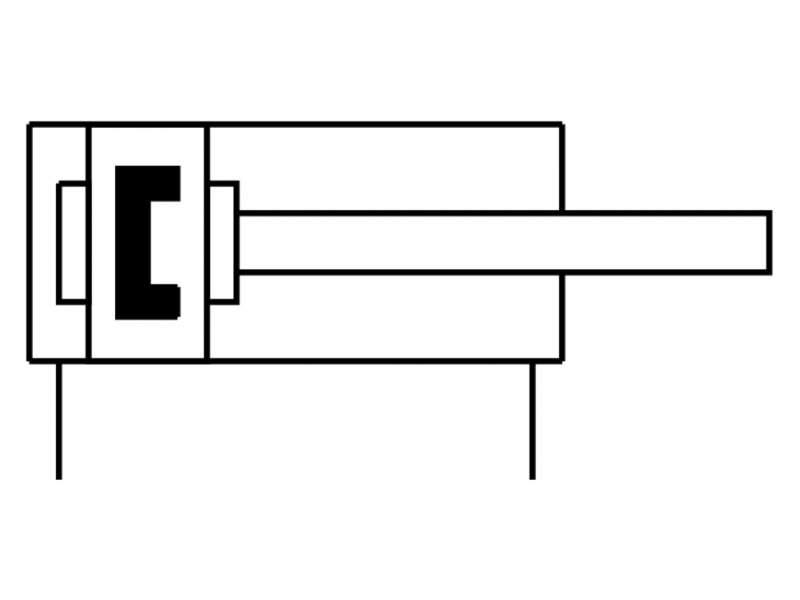

- Symbol
- 00991217
- Operating pressure
- 1 bar ... 10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- For use in the food industry
- See supplementary material information
- Ambient temperature
- 0 °C ... 80 °C
- Theoretical force at 6 bar, retracting
- 104 N
- Theoretical force at 6 bar, advancing
- 121 N
- Moving mass at 0 mm stroke
- 21 g
- Additional weight per 10 mm stroke
- 4.8 g
- Basic weight with 0 mm stroke
- 130 g
- Additional moving mass per 10 mm stroke
- 2.2 g
- Type of mounting
- With accessories
- Pneumatic connection
- M5
- Note on materials
- RoHS-compliant
- Cover material
- High-alloy stainless steel
- Piston rod material
- High-alloy stainless steel
- Material of cylinder barrel
- High-alloy stainless steel
-
8073761datasheet
-
CR-DRIVES ENUS
