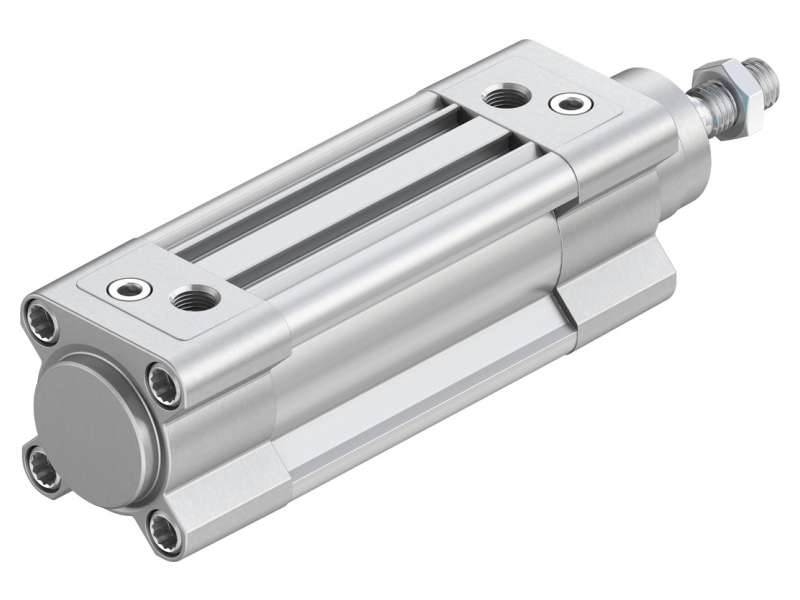

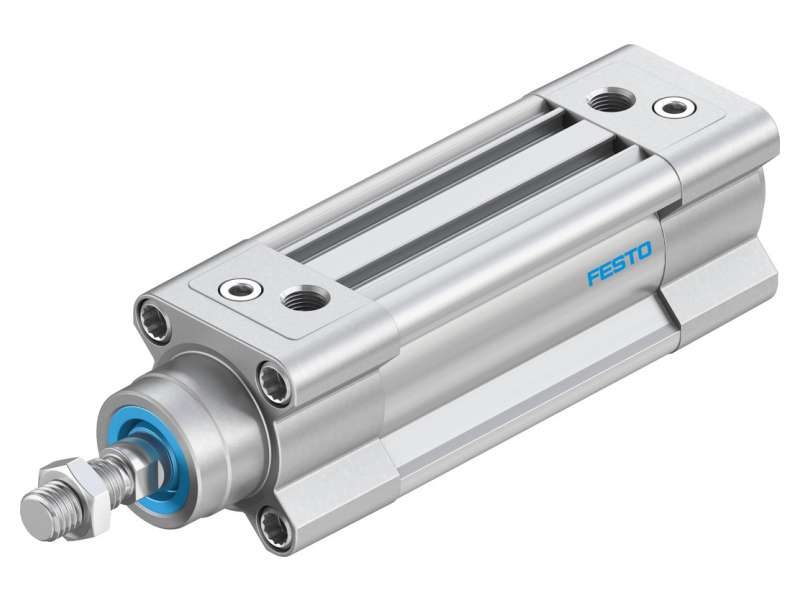

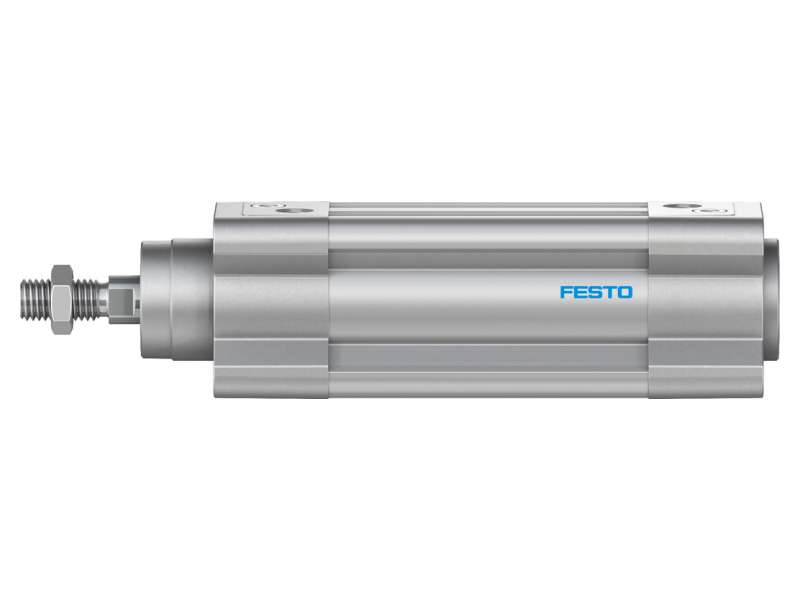

Festo ISO cylinder DSBC-32-40-PPVA-N3 ; 1376423
ISO profile cylinder to ISO 15552 with a wide range of mounting options. ISO 15552 (ISO 6431, VDMA 24562) Self-adjusting pneumatic end-position cushioning which...
Cena na upit
ISO profile cylinder to ISO 15552 with a wide range of mounting options.
- ISO 15552 (ISO 6431, VDMA 24562)
- Self-adjusting pneumatic end-position cushioning which adapts optimally to changes in load and speed
- Standard profile with two sensor slots
- Wide range of variants for customized applications
- Comprehensive range of mounting accessories for just about every type of installation
- Magnetic piston for position sensing
- Stroke
- 40 mm
- Piston diameter
- 32 mm
- Piston rod thread
- M10x1.25
- Type code
- DSBC
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Design
-
Profile barrel
Piston rod
Piston - Position sensing
- For proximity sensor
- Symbol
- 00991235
- Variants
- Piston rod at one end
- Operating pressure
- 0.6 bar ... 12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Ambient temperature
- -20 °C ... 80 °C
- Impact energy in the end positions
- 0.4 J
- Cushioning length
- 17 mm
- Theoretical force at 6 bar, retracting
- 415 N
- Theoretical force at 6 bar, advancing
- 483 N
- Moving mass at 0 mm stroke
- 110 g
- Additional weight per 10 mm stroke
- 27 g
- Basic weight with 0 mm stroke
- 465 g
- Additional moving mass per 10 mm stroke
- 9 g
- Type of mounting
-
With internal thread
With accessories
Optionally: - Pneumatic connection
- G1/8
- Note on materials
- RoHS-compliant
- Cover material
-
Die-cast aluminum
Coated - Seals material
- TPE-U(PU)
- Piston rod material
- High-alloy steel
- Material of cylinder barrel
-
Wrought aluminum alloy
Smooth anodized
-
1376423datasheet
-
D15000100122133
