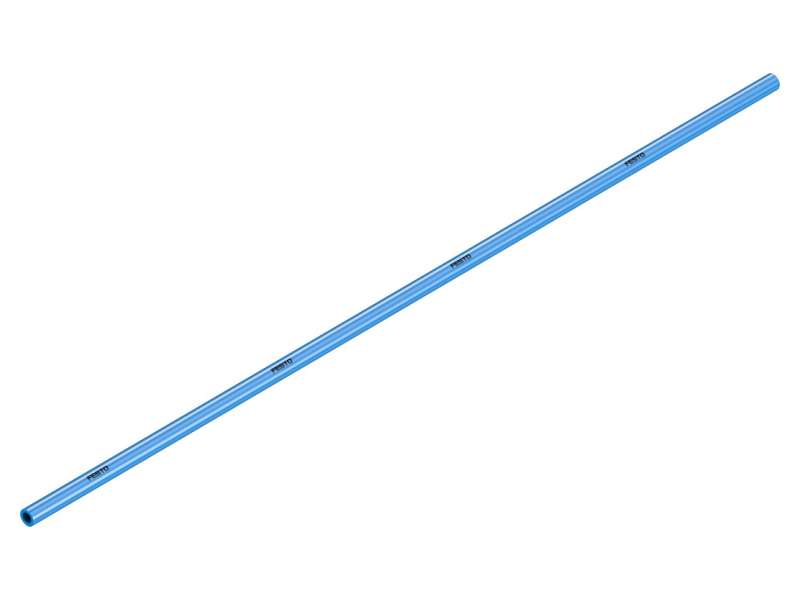

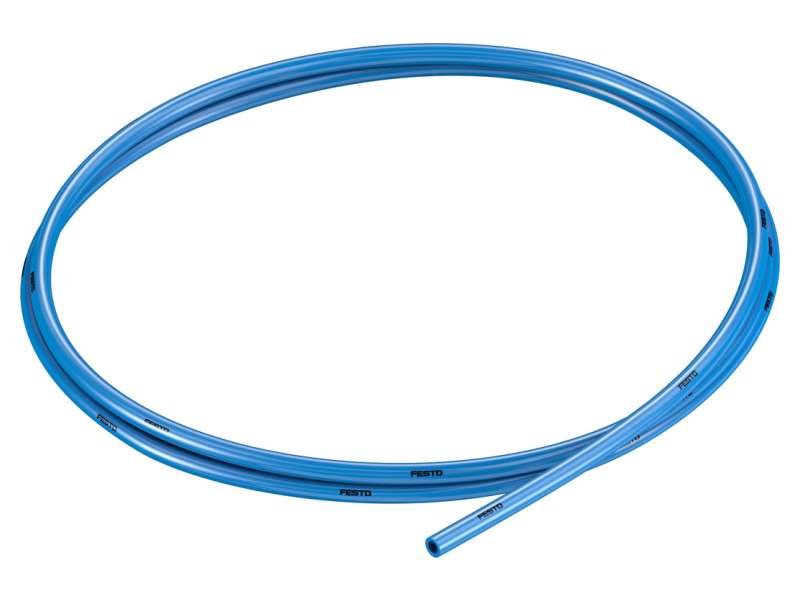

Festo Plastic tubing PUN-4X0,75-BL ; 159662

Plastic tubing PUN-4X0,75-BL PUN-4X0,75-BL Part no. 159662 Polyurethane High resistance to stress cracks Suitable for energy-chains Also available as DUO plastic...

Brand: festo
Šifra: 159662
Dostupnost: Proveriti dostupnost

Cena na upit

Plastic tubing PUN-4X0,75-BL

PUN-4X0,75-BL Part no. 159662

Polyurethane
High resistance to stress cracks
Suitable for energy-chains
Also available as DUO plastic tubing
Operating medium compressed air, vacuum

Pneumatic tubing test conditions: Suitability for energy chains: >5 million cycles as per FN 942021
Tubing characteristics: Suitable for energy chains in applications with high cycle rates
Outside diameter: 4 mm
Bending radius relevant for flow rate: 17 mm
Inside diameter: 2.6 mm
Min. bending radius: 8 mm
Type code: PUN
Temperature-dependent operating pressure: -0.95 bar ... 10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Material fire test: UL94 HB
Ambient temperature: -35 °C ... 60 °C
Certification: German Technical Control Board (TÜV)
Product weight by length: 0.0089 kg/m
Pneumatic connection: For plug connection outside diameter 4 mm
For barbed fitting, inside diameter 3 mm
For barbed fitting, inside diameter 3 mm, with union nut
Color: Blue
Shore hardness: D 52 +/-3
Note on materials: RoHS-compliant
Free of copper and PTFE
Material of pneumatic tubing: TPE-U(PU)

159662datasheet
OD-TUBING ENUS
