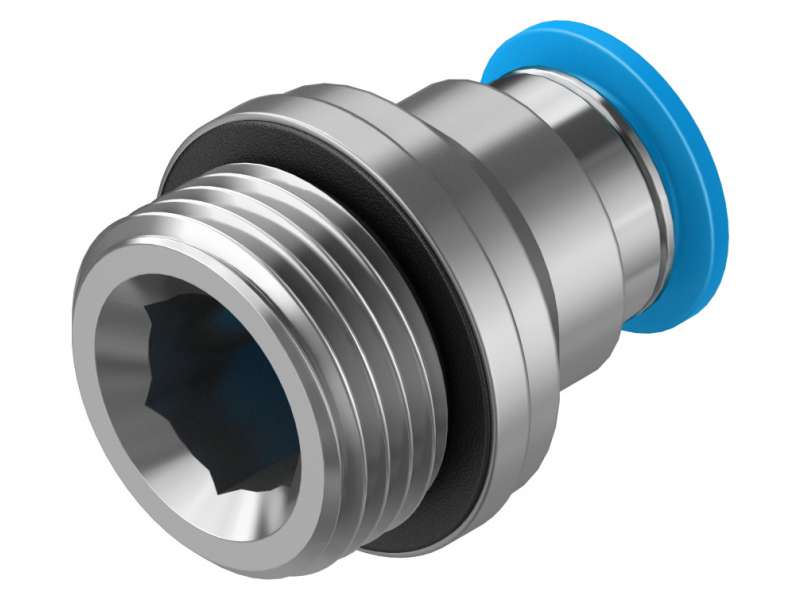

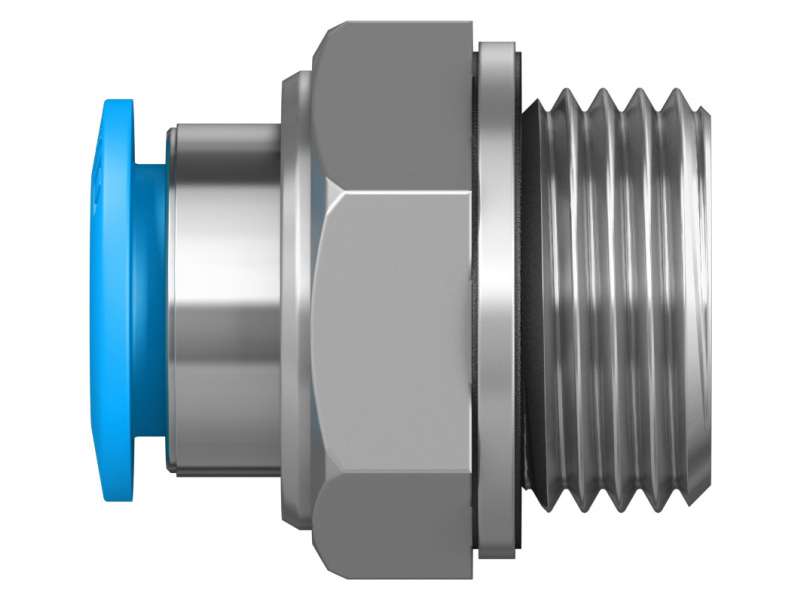

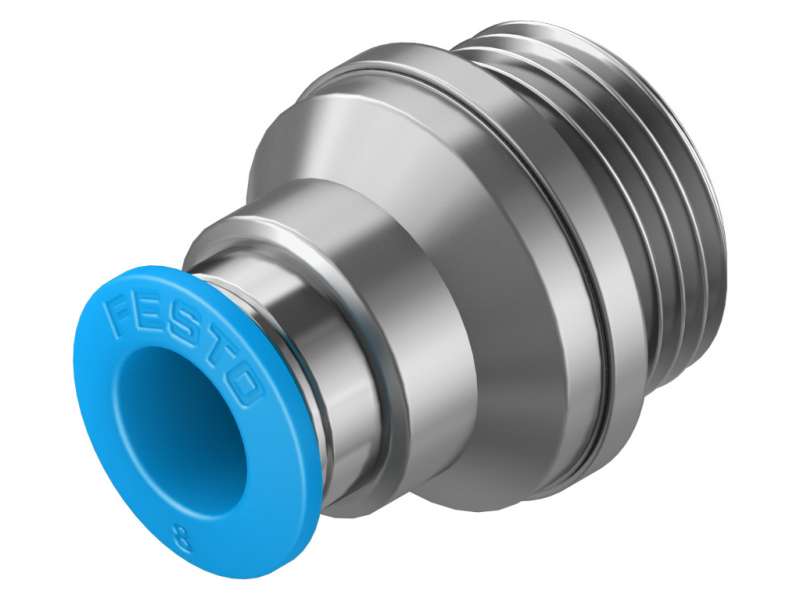

Festo Push-in fitting QS-G1/2-12 ; 186104
Standard series Wide range of variants: large selection for maximum flexibility in standard applications PBT and nickel-plated brass Operating media: compressed...
Cena na upit
- Standard series
- Wide range of variants: large selection for maximum flexibility in standard applications
- PBT and nickel-plated brass
- Operating media: compressed air, vacuum, (water)
- Size
- Standard
- Maritime classification
- See certificate
- Nominal width
- 11 mm
- Type code
- QS
- Type of seal on screwed trunnion
- Sealing ring
- Mounting position
- Any
- Pack size
- 1
- Design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.95 bar ... 6 bar
- Temperature-dependent operating pressure
- -0.95 bar ... 14 bar
- Operating medium
-
Compressed air as per ISO 8573-1:2010 [7:-:-]
Water as per manufacturer's declaration at www.festo.com - Information on operating and pilot media
- Operation with oil lubrication possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Ambient temperature
- -10 °C ... 80 °C
- Nominal tightening torque
- 26 Nm
- Tolerance for nominal tightening torque
- ± 20%
- Product weight
- 39 g
- Pneumatic connection 1
- External thread G1/2
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS-compliant
- Housing material
-
Brass
Nickel-plated - Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- High-alloy stainless steel
-
186104datasheet
-
QS ENUS
