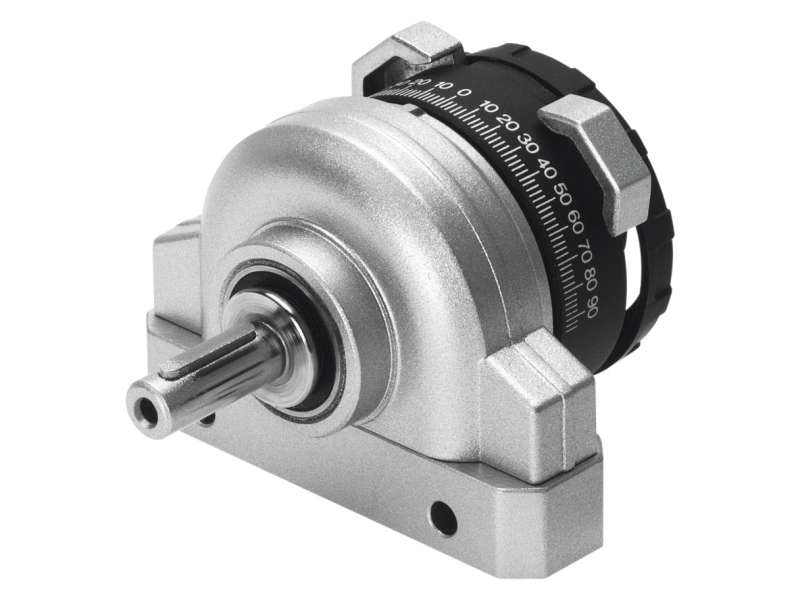

Festo Quarter turn actuator DSR-25-180-P ; 11911
Rotary vane actuator With spigot or hollow flanged shaft The modern alternative is the quarter turn actuator DRVS...
Cena na upit
- Rotary vane actuator
- With spigot or hollow flanged shaft
- The modern alternative is the quarter turn actuator DRVS
- Size
- 25
- Cushioning angle
- 1.8 deg
- Adjustment range of swivel angle
- 0 deg ... 180 deg
- Swivel angle
- 0 deg ... 180 deg
- Type code
- DSR
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Design
- Rotary vane
- Position sensing
- None

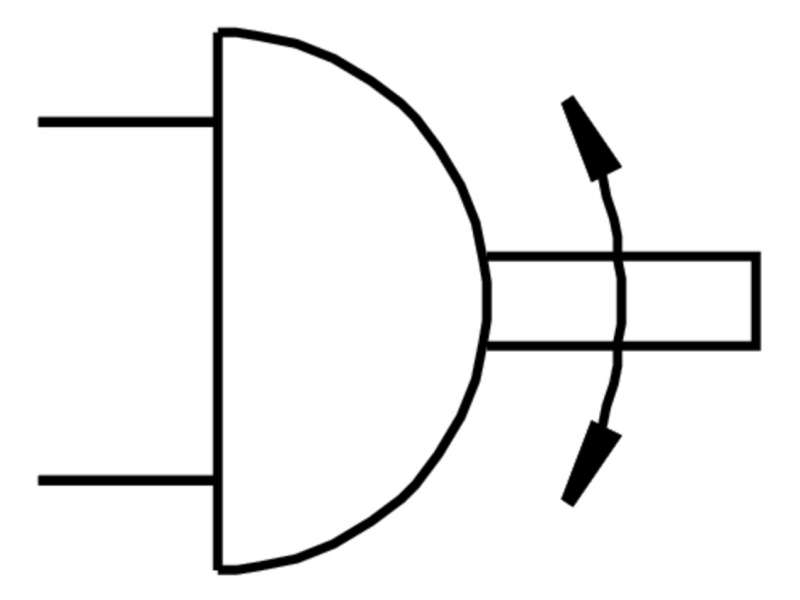

- Symbol
- 00991265
- Operating pressure
- 1.5 bar ... 8 bar
- Max. swivel frequency at 6 bar
- 3 Hz
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Ambient temperature
- -10 °C ... 60 °C
- Theoretical torque at 6 bar
- 5 Nm
- Product weight
- 500 g
- Type of mounting
- With through-hole
- Pneumatic connection
- M5
- Drive shaft material
-
Steel
Nickel-plated - Seals material
- NBR
-
11911datasheet
-
DSR ENUS
