Festo Quick coupling socket KD4-1/2-A ; 2145

Quick coupling socket KD4-1/2-A One or two-side blocking quick coupling to ISO 4414. KD4-1/2-A Part no. 2145 Nickel-plated brass, PP Quick coupling for standard...

Brand: festo
Šifra: 2145
Dostupnost: Proveriti dostupnost
Cena na upit

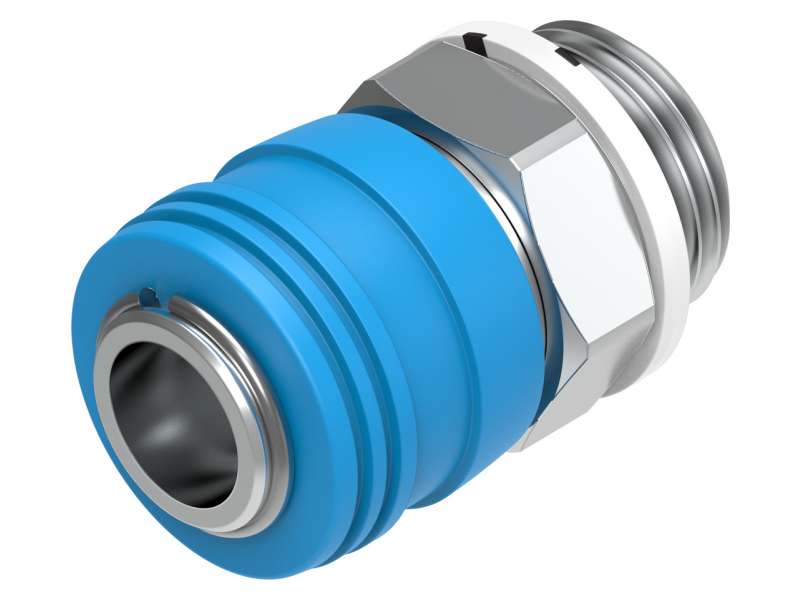

Quick coupling socket KD4-1/2-A

One or two-side blocking quick coupling to ISO 4414.
KD4-1/2-A Part no.  2145
  • Nickel-plated brass, PP
  • Quick coupling for standard applications without safety function
  • With external or internal thread or with barbed fitting or quick connector
  • Shut off at one or both ends
  • Operating medium compressed air, vacuum
Nominal width
10 mm
Type code
KD4
Operating pressure for entire temperature range
-0.95 bar ... 12 bar
Standard nominal flow rate
1301 l/min
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media
Operation with oil lubrication possible
Corrosion resistance class (CRC)
1 - Low corrosion stress
Ambient temperature
-10 °C ... 60 °C
Nominal tightening torque
32.5 Nm
Tolerance for nominal tightening torque
± 20%
Product weight
78 g
Pneumatic connection 1
External thread G1/2
Note on materials
RoHS-compliant
  • 2145datasheet

    2145datasheet
