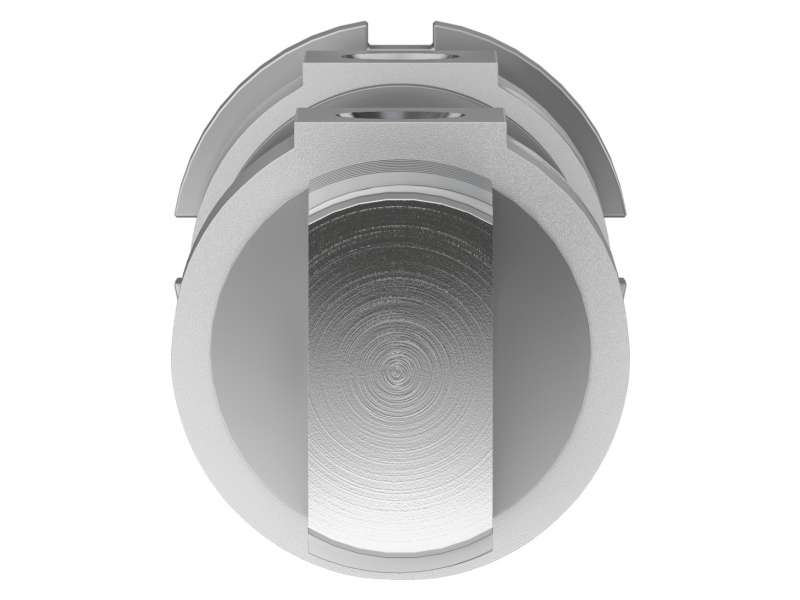

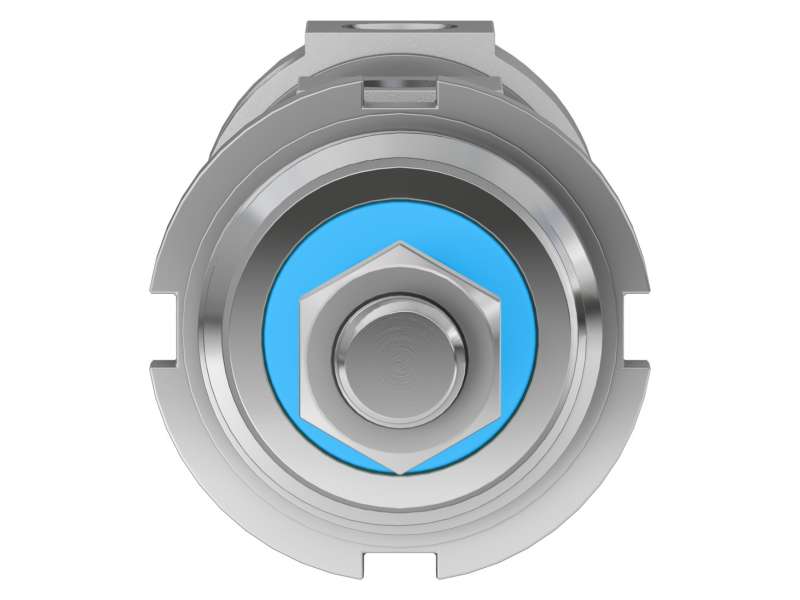

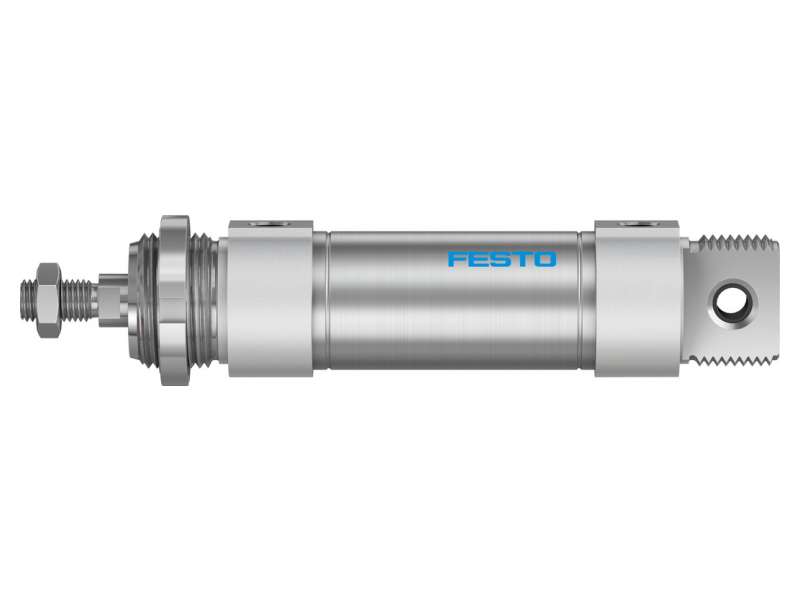

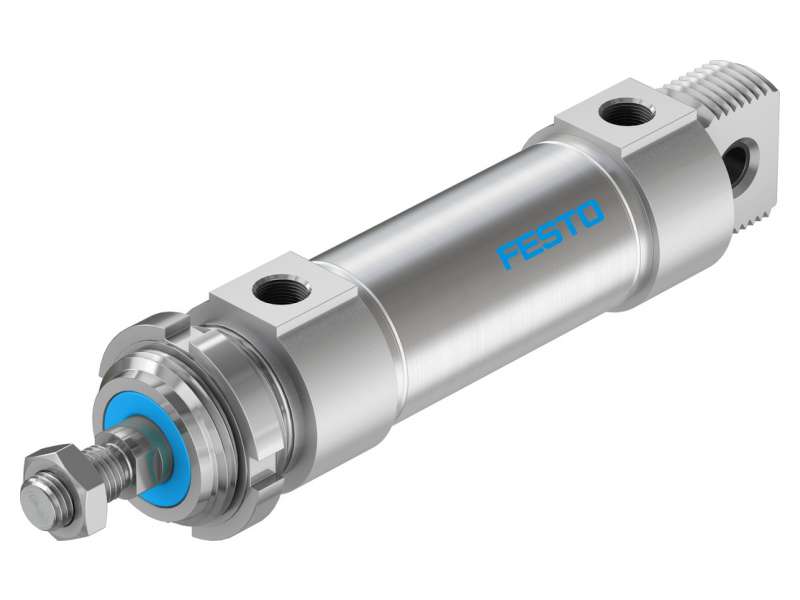

Festo Round cylinder DSNU-40-50-PPV-A ; 196032
Wide range of variants for customized applications Good running performance and long service life Self-adjusting pneumatic end-position cushioning which adapts optimally...
Cena na upit
- Wide range of variants for customized applications
- Good running performance and long service life
- Self-adjusting pneumatic end-position cushioning which adapts optimally to changes in load and speed
- Piston rod with internal or external thread
- Magnetic piston for position sensing
- Stroke
- 50 mm
- Piston diameter
- 40 mm
- Piston rod thread
- M12x1.25
- Type code
- DSNU
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Design
-
Cylinder barrel
Piston
Piston rod - Position sensing
- For proximity sensor
- Symbol
- 00991235
- Operating pressure
- 1 bar ... 10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Ambient temperature
- -20 °C ... 80 °C
- Cushioning length
- 18 mm
- Theoretical force at 6 bar, retracting
- 633.3 N
- Theoretical force at 6 bar, advancing
- 752.9 N
- Moving mass
- 310 g
- Product weight
- 781 g
- Type of mounting
- With accessories
- Pneumatic connection
- G1/4
- Note on materials
- RoHS-compliant
- Cover material
- Wrought aluminum alloy
- Seals material
-
TPE-U(PU)
NBR - Piston rod material
- High-alloy steel
- Material of cylinder barrel
- High-alloy stainless steel
-
196032datasheet
-
DSNU ENUS
