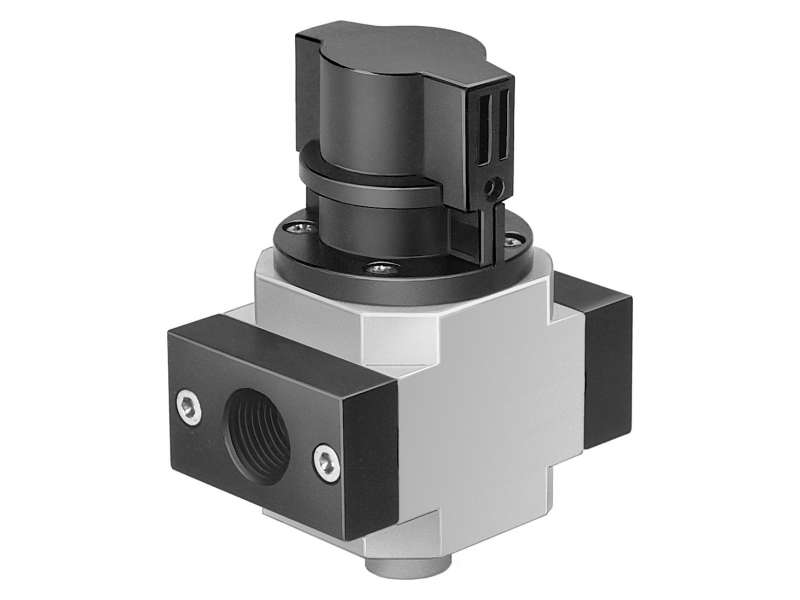

Festo Shut off valveHE-3/8-D-MIDI; 162809
Festo slavina za pripremu komprimovanog vazduha Shut off valveHE-3/8-D-MIDI...
Cena na upit
Festo slavina za pripremu komprimovanog vazduha Shut off valveHE-3/8-D-MIDI
- Maritime classification
- See certificate
- Type code
- HE
- Design
- Piston gate valve
- Actuation type
- Manual
- Sealing principle
- Soft
- Exhaust air function
- Without flow control option
- Manual override
- None

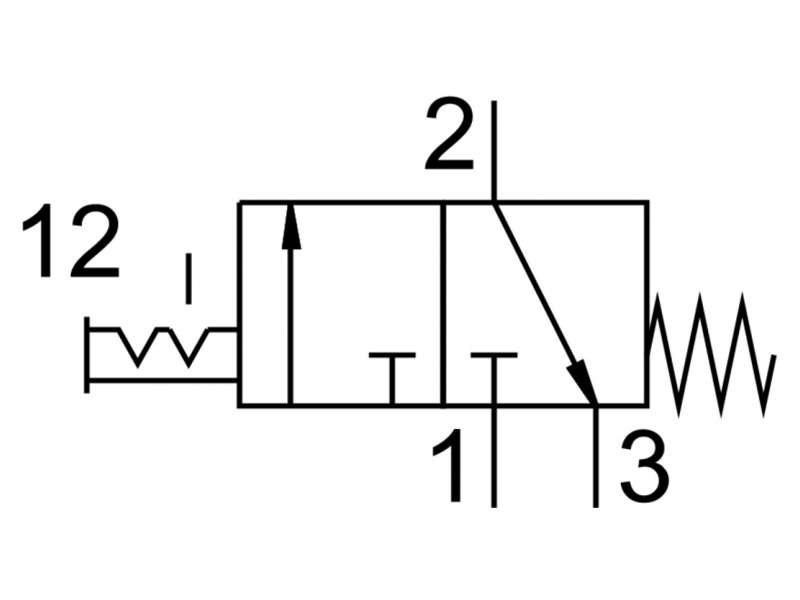

- Symbol
- 00995571
- Valve function
- 3/2, bistable
- Operating pressure
- 0 bar ... 16 bar
- C value
- 15.7 l/sbar
- b-value
- 0.3
- Standard nominal flow rate
- 3200 l/min
- Operating medium
-
Inert gas
Compressed air as per ISO 8573-1:2010 [7:4:4] - Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Note on materials
- RoHS-compliant
- Temperature of medium
- -10 °C ... 60 °C
- Ambient temperature
- -10 °C ... 60 °C
- Type of mounting
-
With accessories
Line installation - Mounting position
- Any
- Flow direction
- Non-reversible
- Product weight
- 511 g
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G3/8
- Pneumatic connection 3
- G1/4
- Air quality class at the output
-
Compressed air as per ISO 8573-1:2010 [7:4:4]
Inert gas - Seals material
- NBR
- Housing material
- Die-cast aluminum
