Festo Vacuum generator VN-10-H-T3-PQ2-VQ2-RO1-B ; 532640
Can be used directly in the work space Cost-effective Maintenance-free operation and reduced noise level through an integrated, open muffler With solenoid valve...
Cena na upit
- Can be used directly in the work space
- Cost-effective
- Maintenance-free operation and reduced noise level through an integrated, open muffler
- With solenoid valve vacuum shut-off
- Nominal width of Laval nozzle
- 0.95 mm
- Width dimension
- 14 mm
- Type code
- VN
- Muffler construction type
- Open
- Mounting position
- Any
- Ejector characteristics
-
Standard
High negative pressure - Manual override
- Non-detenting
- Integrated function
-
Pneumatic muffler open
Shut off valve, electric
Ejector pulse valve, pneumatic - Design
- T-shape

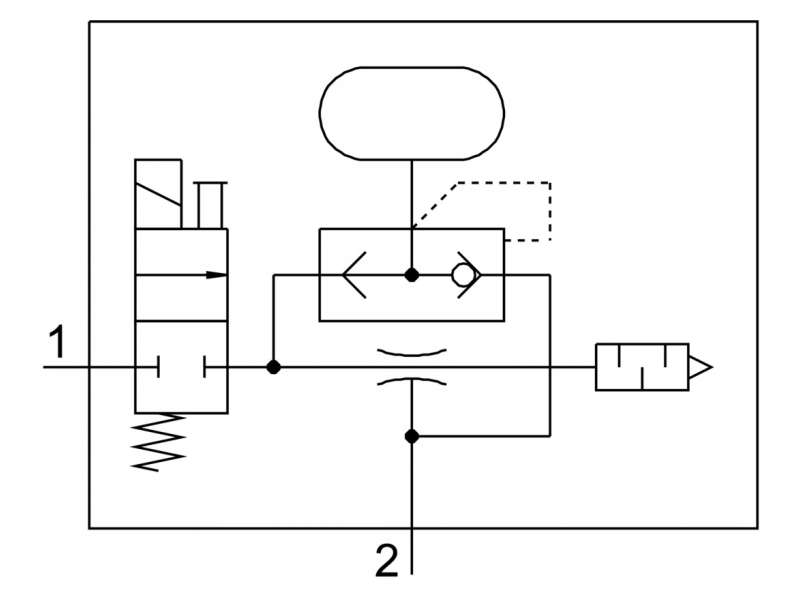

- Symbol
- 00991944
- Valve function
- 2/2
- Operating pressure for max. suction rate
- 3 bar
- Operating pressure
- 2 bar ... 8 bar
- Operating pressure for max. vacuum
- 3.5 bar
- Max. vacuum
- 93 %
- Nominal operating pressure
- 6 bar
- Max. suction rate with respect to atmosphere
- 21.8 l/min
- Air supply time at nominal operating pressure
- 1.06 s
- DC operating voltage range
- 21.6 V ... 26.4 V
- Electrical power consumption
- 1.2 W
- Duty cycle
- 100%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Temperature of medium
- 0 °C ... 50 °C
- Noise level at nominal operating pressure
- 71 dB(A)
- Degree of protection
- IP40
- Ambient temperature
- 0 °C ... 50 °C
- Product weight
- 63 g
- Electrical connection
- Plug
- Type of mounting
-
With accessories
With through-hole
With H-rail - Pneumatic connection 1
- QS-6
- Pneumatic connection 3
- Pneumatic muffler open
- Vacuum connection
- QS-6
- Material of connecting thread
- Wrought aluminum alloy, anodized
- Note on materials
-
Free of copper and PTFE
RoHS-compliant - Seals material
- NBR
- Female nozzle material
- POM
- Housing material
-
POM-reinforced
PA-reinforced - Muffler material
- PE
- Material of screws
- Steel
- Material of jet nozzle
- Wrought aluminum alloy
- Material of pneumatic fitting
-
Nickel-plated
Brass
-
532640datasheet
-
VN ENUS
