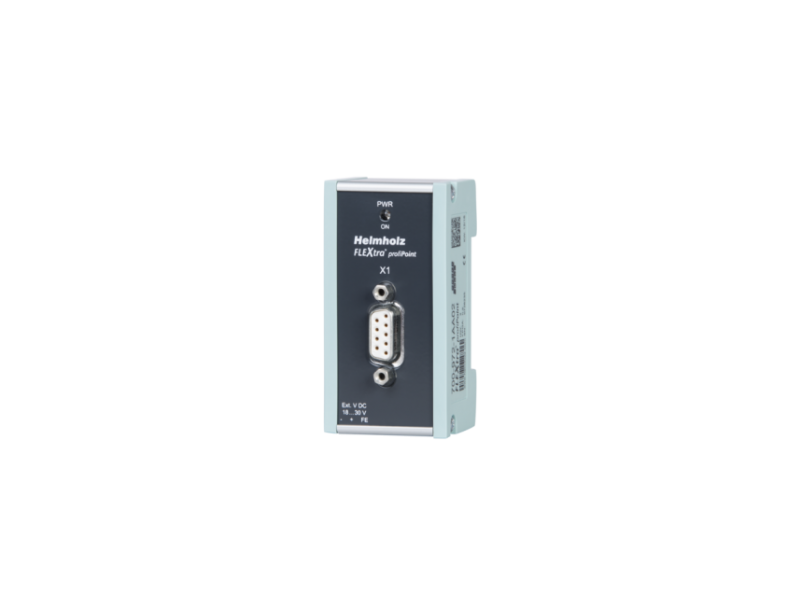

Helmholz FLEXtra profiPoint set, active termination and measuring point, incl. 1 x PROFIBUS connector, 90°, diagnostics LED
It can be used in conjunction with a PROFIBUS connector as the active measurement point or as an active terminator. Power is supplied independent of the bus through...
Cena bez pdv-a: 13.966,72 |
Cena sa pdv-om: 16.760,07 |

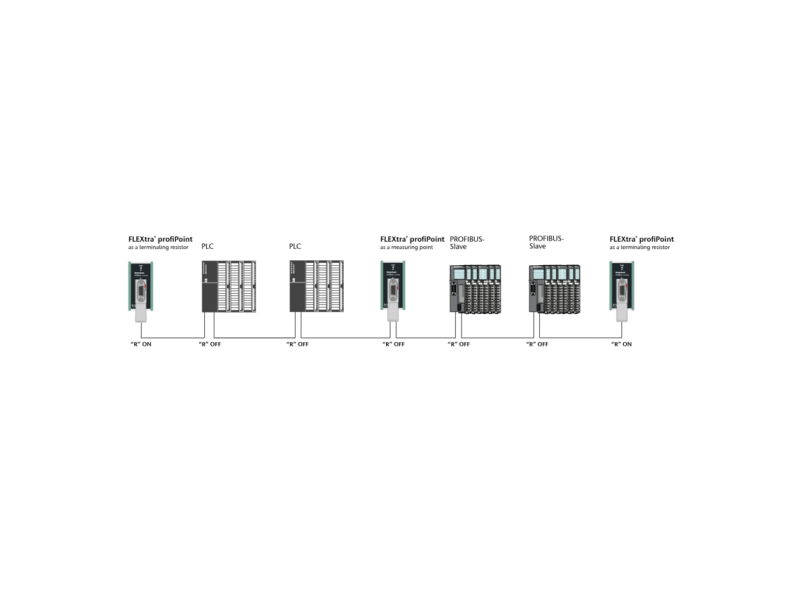

It can be used in conjunction with a PROFIBUS connector as the active measurement point or as an active terminator. Power is supplied independent of the bus through a socket.
Through the use of an active terminating resistor, participants of the bus system can optionally be switched on and off without causing malfunctions.
An integrated LED allows the correct function of the profiPoint to be read. For connection to the PROFIBUS cable, a PROFIBUS connector is required.
This set contains the PROFIBUS connector, 90° diagnosis with PG interface with the proven screw terminal required for connection to the PROFIBUS cable.
- Power supply independent of the bus participants
- Device-independent bus termination due to a separate power supply
- Suitable for use as an active measurement point
- Supply of active PROFIBUS components (compact repeater, NETLink®, PROFIBUS diagnostic connector)
- incl. PROFIBUS connector 90° screw terminal diagnosis with PG interface (700-972-7BB12)
General information | ||
---|---|---|
Order number | 700-972-1XA02 | |
Article name | FLEXtra® profiPoint set | |
Scope of delivery | FLEXtra® profiPoint, instructions, 1x PROFIBUS connector, 90°, screw terminal, diagnostics, with PG | |
Dimensions (DxWxH) | 35 x 32 x 72 mm | |
Weight | Approx. 85 g | |
Segment connection | PROFIBUS connectors | |
Voltage supply | 24 V DC, 18...30 V DC | |
Output voltage per segment | DC 24 V/5 V DC | |
Electrical isolation | 500 V | |
Current draw | Max. 400 mA | |
Ambient conditions | ||
Ambient temperature | 0 °C … +60 °C | |
Transport and storage temperature | -25 °C … +75 °C | |
Pollution degree | 2 | |
Protection rating | IP20 | |
Certifications | CE | |
CE | ||
RoHS | Yes | |
REACH | Yes |
