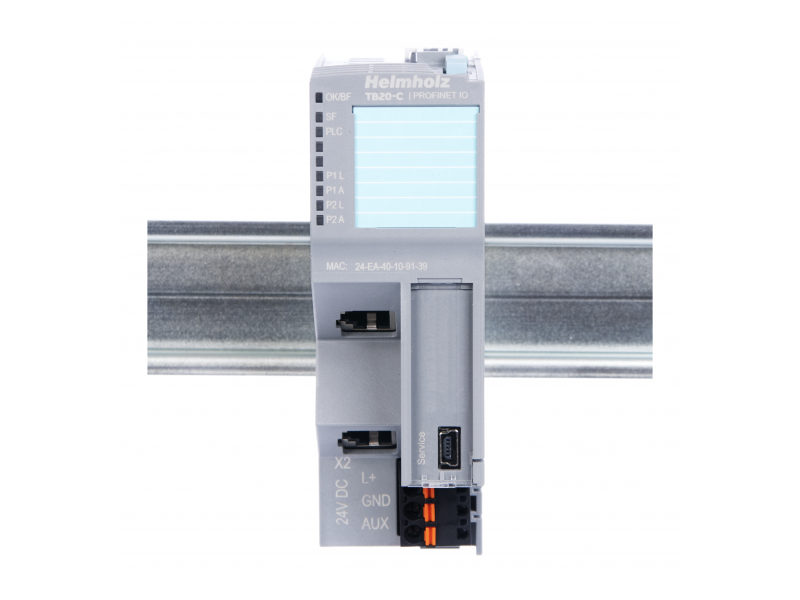

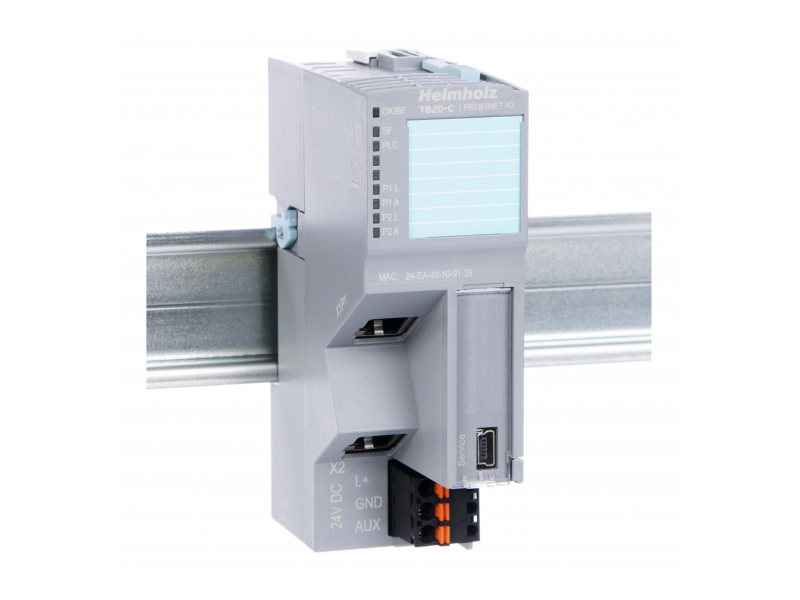

Helmholz TB20-C, PROFINET IO Bus Coupler
The PROFINET bus coupler is designed to connect a PROFINET bus to TB20 peripheral modules. It can accommodate up to 63 modules of any kind connected in series with...
Trenutno nema na stanju
- Modules can be replaced during operation (hot-swapping)
- 24 V DC power supply
- Integrated power supply unit for powering peripheral modules (2.5 A)
- Supplies the system’s I/O voltage (24 VDC)
- USB device port for online diagnostics, configuring parameters, setup, and firmware updates with "TB20 ToolBox"
- TB20 ToolBox simulation for commissioning the I/O system without a higher-level controller in order to test the system's operation (I/O check)
- Concealed "factory reset" switch for restoring the module to its factory settings
- I/O device as per PROFINET IO (IEC 61158-6-10)
- Integrated 2-port switch
- Full-duplex transmission rate of 100 Mbps
- 340 byte I/O data
- Up to 63 peripheral modules
- Conformance Class C
- Media Redundancy Protocol (MRP)
- Automatic addressing / hot-swapping (LLDP, DCP)
- Topology detection
- I&M data
- Diagnostic alarms, process alarms, pull/plug alarms
- Integration using GSDML file
- 7 LEDs, one of them bi-color
General information |
|
Order number |
600-180-1AA11 |
Article name |
TB20-C, PROFINET IO bus coupler |
Scope of delivery |
Bus coupler PROFINET IO, 24 V power supply connector, bus cover element, base module |
Dimensions (DxWxH) |
110 x 35 x 73 mm |
Weight |
Approx. 115 g |
PROFINET interface |
|
Number |
2 |
Protocol |
PROFINET IO as defined in IEC 61158-6-10 |
Physical layer |
Ethernet |
Transmission rate |
100 Mbps full duplex |
I/O image size |
340 bytes |
Connection |
RJ45 |
integrated switch |
Yes |
Features |
Conformance Class C, Media Redundancy Protocol (MRP), automatic addressing / topology detection (LLDP, DCP), PTCP, statistics counter |
Alarm functions |
Diagnostic alarms, process alarms, pull/plug alarms |
Minimum cycle time |
250 µsec. |
IRT bridge delay |
< 3 µsec. |
USB interface |
|
Number |
1 |
Protocol |
Full-speed USB 1.1 device |
Connection |
Mini-USB |
Isolation voltage |
1.5 kV |
Electrical isolation |
Yes |
Number of modules that can be connected in series |
63 |
Voltage supply |
24 V DC, 18...28 V DC |
Current draw |
|
Current draw without modules (internal) |
75 mA |
Power supply for modules |
5 V DC, max 2.5 A |
Power dissipation |
Max. 8 W |
Installation position |
Any |
Ambient conditions |
|
Ambient temperature |
0 °C … +60 °C |
Transport and storage temperature |
-20 °C … +80 °C |
Relative air humidity |
95 % r H without condensation |
Protection rating |
IP 20 |
Certifications |
CE, UL |
UL |
|
Surrounding Air Temperature |
0 °C … +50 °C |
Pollution degree |
2 |
CE |
|
Noise immunity |
DIN EN 61000-6-2 “EMC Immunity” |
Interference emission |
DIN EN 61000-6-4 “EMC Emission” |
Vibration and shock resistance |
DIN EN 60068-2-8:2008 “Vibration”, DIN EN 60068-27:2010 “Shock“ |
RoHS |
Yes |
REACH |
Yes |
