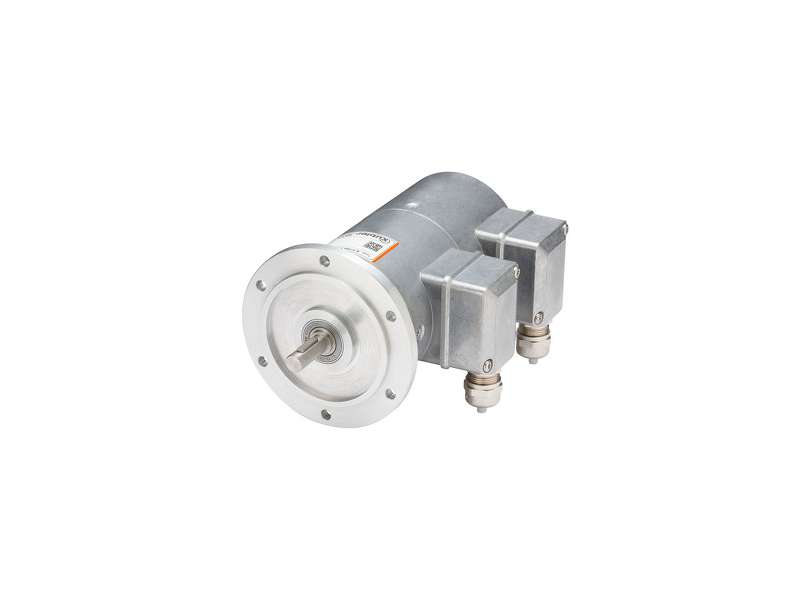

Kuebler Sendix H100 Enkoder za teški pogon sa meh. promenom brzine; 8.H100.112X.XXXX.XXXX.1
Sendix Heavy Duty H100 The Sendix H100 is an extremely robust incremental encoder which is available in 3 versions - as a encoder with and without speed switch and...
Sendix Heavy Duty H100
The Sendix H100 is an extremely robust incremental encoder which is available in 3 versions - as a encoder with and without speed switch and as a twin encoder. The special HD-Safety-LockTM design makes it ideal for applications in heavy industry such as steel plants and cranes. Resistant materials, wide temperature ranges and high protection ensure insensitivity to the harshest environmental conditions. The innovative connection technology enables simple and quick installation.
- HD-Safety-LockTM bearing design for extremely high bearing load capacity up to 300 N axial and 400 N radial.
- With a temperature range of -40°C to +100°C, IP66 protection and seawater-resistant material, the encoder is resistant to harsh environmental conditions.
- Keyway in the shaft guarantees a tight fit to the application.
- Protection against overspeed by mechanical speed switch.
- Innovative, pluggable spring terminal strips in the terminal box greatly simplify cable connection and offer maximum safety.
- Variable connection options due to the 180° rotatable connection hood.
- A variety of resolutions and switching speeds are available as standard.
Mechanical | |
---|---|
Dimension | Ø 115 mm |
Shaft type | 11 mm shaft, feather key |
Flange type |
Euro flange Ø 115.00 mm |
Working temperature | -40 °C ... +100 °C |
Protection level | IP66 |
Connection types | Terminal box |
Max. rotational speed | 6.000 min-1 |
Weight | 2700 g |
Electrical | |
---|---|
Scanning | optical |
Resolution max. | 5.000 ppr incremental |
Supply voltage |
5...30 V DC 10...30 V DC |
Interfaces |
Push-pull TTL / RS422 |
