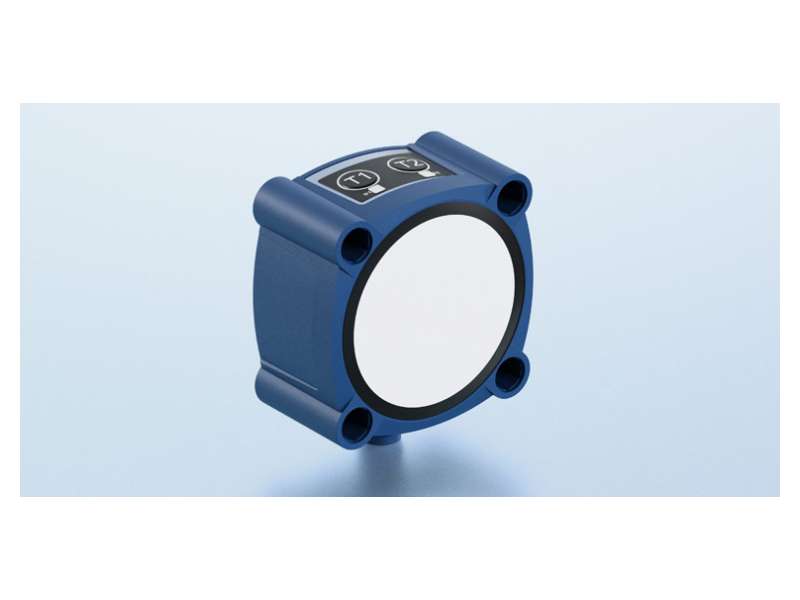

Microsonic Ultrazvučni senzor lcs+600/IU
microsonic ultrazvučni senzor lcs+600/IU...
Cena na upit
microsonic ultrazvučni senzor lcs+600/IU
-
1 x analogue 4-20 mA + 0-10 V
-
8,000 mm
600 - 8.000 mm
cuboidal
analogue distance measurements
UL Listed
echo propagation time measurement
80 kHz
600 mm
6,000 mm
8,000 mm
0.18 mm to 2.4 mm, depending on the analogue window
± 0.15 %
± 1 % (temperature drift internally compensated)
9 - 30 V d.c., reverse polarity protection
± 10 %
≤ 60 mA

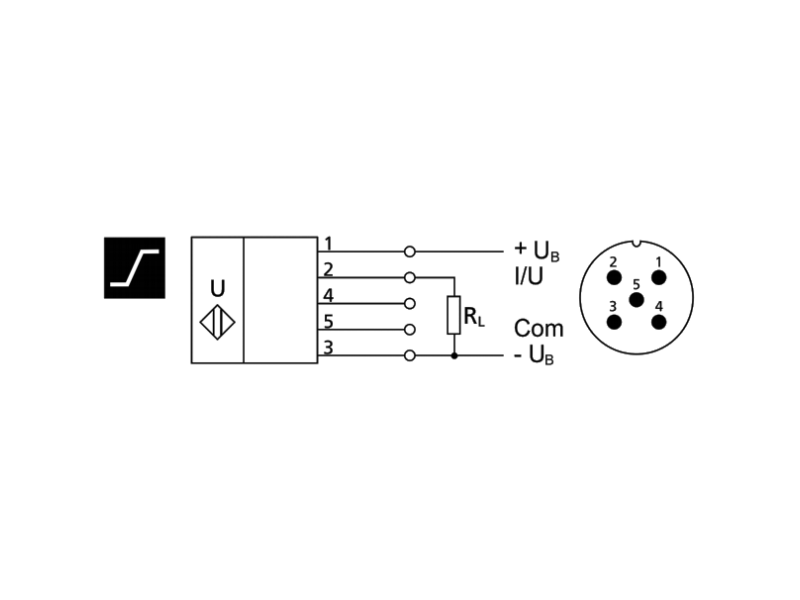

5-pin M12 initiator plug
analogue output
current: 4-20 mA / voltage: 0-10 V (at UB ≥ 15 V), short-circuit-proof
switchable rising/falling
current: 4-20 mA / voltage: 0-10 V (at UB ≥ 15 V), short-circuit-proof
switchable rising/falling
240 ms
< 450 ms
com input
synchronisation input
synchronisation input
PBT
polyurethane foam, epoxy resin with glass contents
IP 67
-25°C to +70°C
-40°C to +85°C
240 g
yes
2 push-buttons
Teach-in via push-button
LCA-2 with LinkControl
LCA-2 with LinkControl
yes
yes
UL Listed
-
microsonic lcs+600 IU
