- Input Signal:
  1 Digital Input
  3 Analog Inputs

- Signal Type:
  Thermocouples J,K,T,N,E,R,S,B, Pt100,
  0-50mV, 0-5V, 0-10V, 0-20mA, 4-20Ma

- Function of Digital Input: Counter of Pulses, Recorder of Events or Starts Logger

- Digital Output: 1 PNP Output (Electronic Switch or Alarm)

- Internal Sensors: NTC for temperature,Battery Voltage and External Power Supply

- Display: 3 lines with 4½ digits

- Resolution:
  Analog Inputs: 15 bits
  Counter of pulses: 16 bits

- Memory Capability: 140000 records

- Recording Interval: 1 sec to 18 h

- Variable Record: Instantaneous or average

- Acquisition Trigger: Date/Hour, Start button, Digital Input or by Software

- Alarms: 8 Alarms (two per channel) Low and High

- Internal Buzzer: Yes

- Communication Interface:
  Wi-Fi 802.11 b/g/n
  USB

- Configuration Software : NXperience for Windows

- Communication with SCADA or Cloud system: MQTT and Modbus TCP protocol

- Power Supply: 10-30Vcc

- Backup Battery:
  4 AA alkaline piles
  Typical autonomy 2 years (turns off Wi-Fi)

- Operation Temperature:
  With power supply: -20 to 70 °C / -4 to 158 °F
  With batteries: -10 to 50 °C / 14 to 122 °F

- Enclosure Protection Rate: IP40

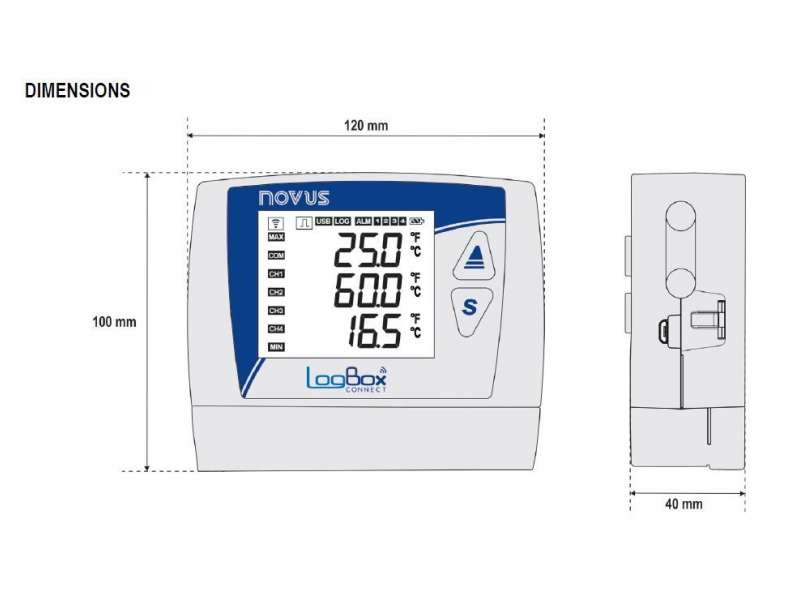

- Dimensions:120 x 100 x 40 mm (4.72 x 3.94 x 1.57 in)
