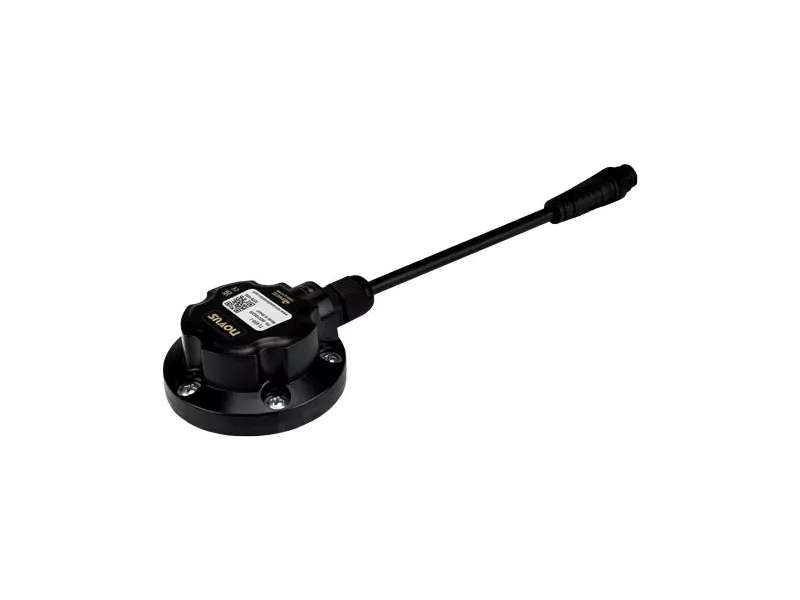

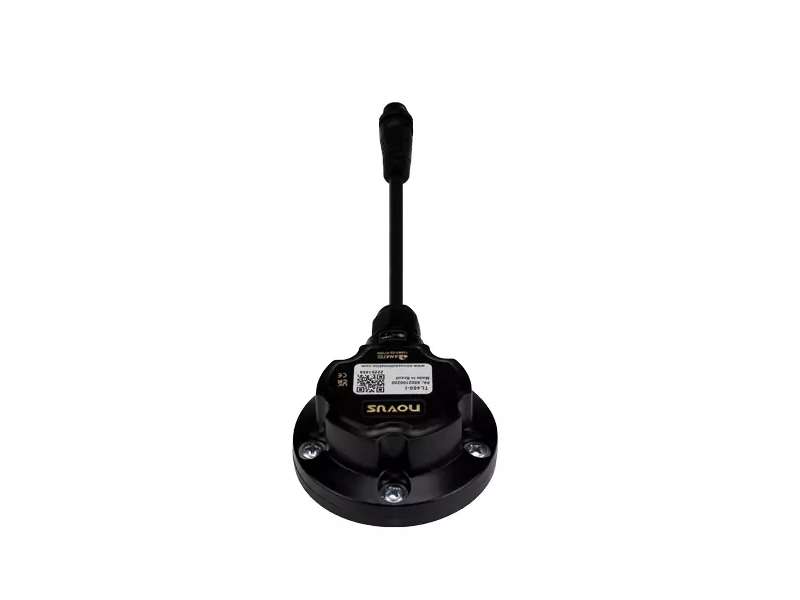

NOVUS TL400-I industrial level transmitter 4 - 20mA output 150mm M12 cable; 8802100200
NOVUS TL400-I industrial level transmitter 4 - 20mA output 150mm M12 cable; 8802100200...
Cena bez pdv-a: 15.871,28 |
Cena sa pdv-om: 19.045,53 |
NOVUS TL400-I industrial level transmitter 4 - 20mA output 150mm M12 cable; 8802100200
- Measuring Range: Up to 4 m
- Measurement Accuracy: ± 3 mm
- Output Signal: 4 to 20 mA
- Connector Type: 150 mm cable with M12 4-pin male connector
- User Interface: Mobile Device + SigNow Mobile App (Android and iOS)
- Power Supply: 8 to 33 Vdc
- Power Consumption: < 70 mA @ 12 Vdc or < 40 mA @ 24 Vdc
- Electrical Protection: Against reverse polarity
- Operating Temperature: -20 to 80 °C (-4 to 176 °F)
- Dimensions: Ø66 x 31 mm
- Mounting Pattern: SAE 5 Bolt Hole
- Housing Protection Rating: IP68
- Measurement Accuracy: ± 3 mm
- Output Signal: 4 to 20 mA
- Connector Type: 150 mm cable with M12 4-pin male connector
- User Interface: Mobile Device + SigNow Mobile App (Android and iOS)
- Power Supply: 8 to 33 Vdc
- Power Consumption: < 70 mA @ 12 Vdc or < 40 mA @ 24 Vdc
- Electrical Protection: Against reverse polarity
- Operating Temperature: -20 to 80 °C (-4 to 176 °F)
- Dimensions: Ø66 x 31 mm
- Mounting Pattern: SAE 5 Bolt Hole
- Housing Protection Rating: IP68
-
level transmitter datasheet tl400-i v30x c en
-
nonintrusivelevelsensor tl400-i flyers v1.3 en
-
level transmitter manual tl400-i v30x d en
