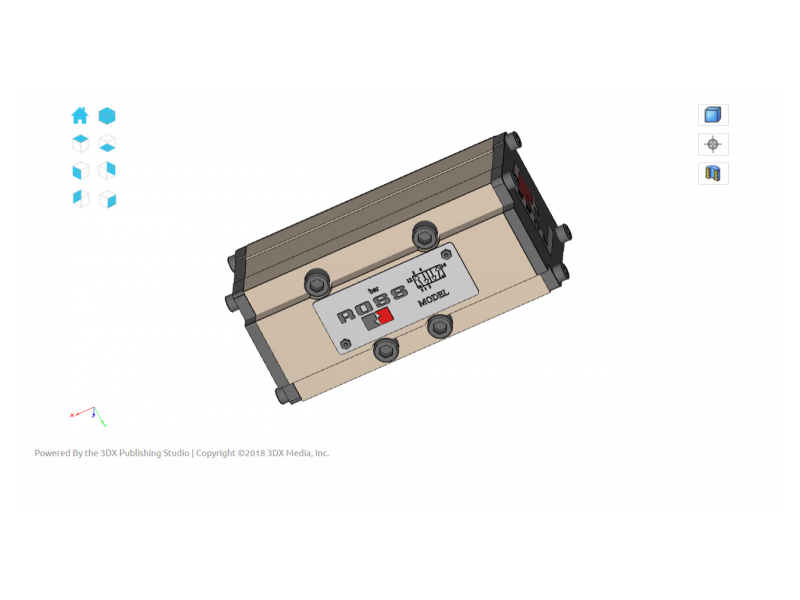

ROSS EUROPA Pressure Controlled Spool & Sleeve Valve 5/3 Double ; W6057B3417
Spool and sleeve ISO Size 1, 2, and 3 5/2 or 5/3 options Single base and manifold base mounting DIN Plug connectors...
Cena na upit
- Spool and sleeve
- ISO Size 1, 2, and 3
- 5/2 or 5/3 options
- Single base and manifold base mounting
- DIN Plug connectors
| ISO SIZE | 2 |
| BASE PORT SIZE | 3/8 - 1/2 |
| FUNCTION | 5/3 Double |
| CENTER POSITION | Open Center |
| VOLTAGE | - |
| CONSTRUCTION | Spool & Sleeve |
| ACTUATION | Pressure Controlled |
| AVG CV | 1.9 |
| MANUAL OVERRIDE | Non-Locking |
| MOUNTING | Base Mounted |
| FLOW MEDIA | Filtered Air |
| APPLICATION | Standard Temp |
| INLET PRESSURE RANGE | VACUUM to 150 PSIG (VACUUM to 10 BAR) |
| AMBIENT TEMPERATURE RANGE | 40 to 175 F (4 to 80 C) |
| MEDIA TEMPERATURE RANGE | 40 to 175 F (4 to 80 C) |
| WEIGHT: | 1.5 lbs (0.68 kg) |
-
ROSS Pneumatic ISO 5599-1 Valves W60 Series
-
Valve Installation User Manual UM-331
-
ROSS W60 Series ISO 5599-1 Valves Installation Instruction
