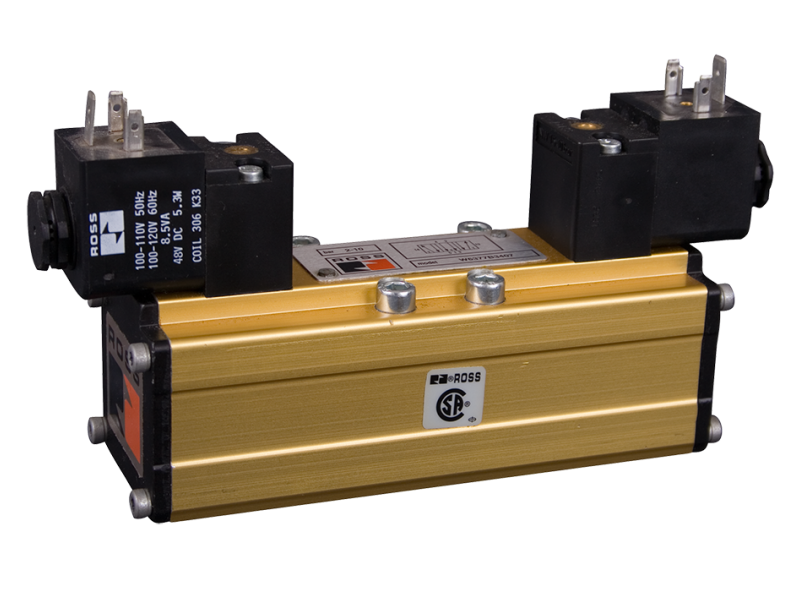

ROSS EUROPA Solenoid Controlled Spool & Sleeve Valve 5/3 Double ; W6077A3945W
Spool and sleeve ISO Size 1, 2, and 3 5/2 or 5/3 options Single base and manifold base mounting DIN Plug connectors...
Cena na upit
- Spool and sleeve
- ISO Size 1, 2, and 3
- 5/2 or 5/3 options
- Single base and manifold base mounting
- DIN Plug connectors
| ISO SIZE | 1 |
| BASE PORT SIZE | 3/8 - 1/2 |
| FUNCTION | 5/3 Double |
| CENTER POSITION | Power Center |
| VOLTAGE | 24 VDC |
| CONSTRUCTION | Spool & Sleeve |
| ACTUATION | Solenoid Controlled |
| AVG CV | 1.9 |
| MANUAL OVERRIDE | Non-Locking |
| MOUNTING | Base Mounted |
| FLOW MEDIA | Filtered Air |
| APPLICATION | Standard Temp |
| INLET PRESSURE RANGE | VACUUM to 150 PSIG (VACUUM to 10 BAR) |
| AMBIENT TEMPERATURE RANGE | 40 to 120 F (4 to 50 C) |
| MEDIA TEMPERATURE RANGE | 40 to 175 F (4 to 80 C) |
| WEIGHT: | 2.8 lbs (1.27 kg) |
-
ROSS Pneumatic ISO 5599-1 Valves W60 Series
-
ROSS W60 Series ISO 5599-1 Valves Installation Instruction
-
Valve Installation User Manual UM-331
