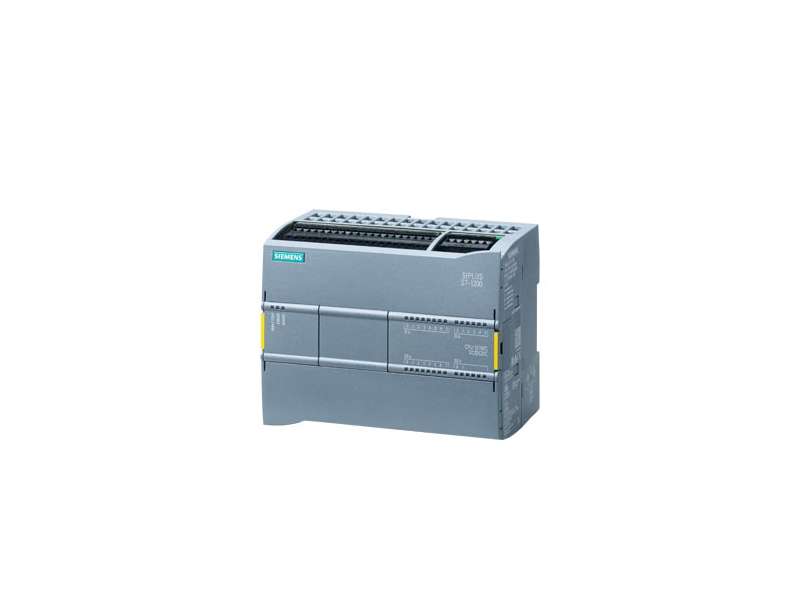

Siemens CPU 1215 FC, DC/DC/RLY,14DI/10DO/2AI/2AO - 6ES7215-1HF40-0XB0
Siemens CPU 1215 FC, DC/DC/RLY,14DI/10DO/2AI/2AO - 6ES7215-1HF40-0XB0
SIMATIC S7-1200F, CPU 1215 FC, compact CPU, DC/DC/relay, 2 PROFINET ports, onboard I/O: 14 DI 24 V DC; 10 DO relay 2 A, 2 AI 0-10 V DC, 2 AO 0-20 mA DC, Power supply:...
SIMATIC S7-1200F, CPU 1215 FC, compact CPU, DC/DC/relay, 2 PROFINET ports, onboard I/O: 14 DI 24 V DC; 10 DO relay 2 A, 2 AI 0-10 V DC, 2 AO 0-20 mA DC, Power supply: DC 20.4-28.8 V DC, Program/data memory 150 KB
General information
Product type designation
CPU 1215FC DC/DC/relay
Firmware version
V4.5
Engineering with
● Programming package
STEP 7 V17 or higher
Supply voltage
Rated value (DC)
● 24 V DC
Yes
permissible range, lower limit (DC)
20.4 V
permissible range, upper limit (DC)
28.8 V
Reverse polarity protection
Yes
Load voltage L+
● Rated value (DC)
24 V
● permissible range, lower limit (DC)
20.4 V
● permissible range, upper limit (DC)
28.8 V
Input current
Current consumption (rated value)
500 mA; CPU only
Current consumption, max.
1 500 mA; CPU with all expansion modules
Inrush current, max.
12 A; at 28.8 V DC
I²t
0.5 A²·s
Output current
for backplane bus (5 V DC), max.
1 600 mA; Max. 5 V DC for SM and CM
Encoder supply
24 V encoder supply
● 24 V
L+ minus 4 V DC min.
Power loss
Power loss, typ.
12 W
Memory
Work memory
● integrated
150 kbyte
● expandable
No
Load memory
● integrated
4 Mbyte
● Plug-in (SIMATIC Memory Card), max.
with SIMATIC memory card
Backup
● present
Yes
● maintenance-free
Yes
● without battery
Yes
CPU processing times
for bit operations, typ.
0.08 µs; / instruction
for word operations, typ.
1.7 µs; / instruction
for floating point arithmetic, typ.
2.3 µs; / instruction
CPU-blocks
Number of blocks (total)
DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used
OB
● Number, max.
Limited only by RAM for code
Data areas and their retentivity
Retentive data area (incl. timers, counters, flags), max.
14 kbyte
Flag
● Size, max.
8 kbyte; Size of bit memory address area
Local data
● per priority class, max.
16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB
Address area
Process image
● Inputs, adjustable
1 kbyte
● Outputs, adjustable
1 kbyte
Hardware configuration
Number of modules per system, max.
3 comm. modules, 1 signal board, 8 signal modules
Time of day
Clock
● Hardware clock (real-time)
Yes
● Backup time
480 h; Typical
● Deviation per day, max.
±60 s/month at 25 °C
Digital inputs
Number of digital inputs
14; Integrated
● of which inputs usable for technological functions
